Trolley washer-disinfector CS 750 series

reprocessingfor containersfor carts

Overview
The CS 750 is a cart and large-item washer-disinfector designed for cleaning, disinfection and drying of hospital transport carts, containers, OR tables and bed frames. It delivers fast cycle times (up to 10 cycles/hour), low water consumption and configurable chamber sizes to fit CSSD layouts.

Design and operation

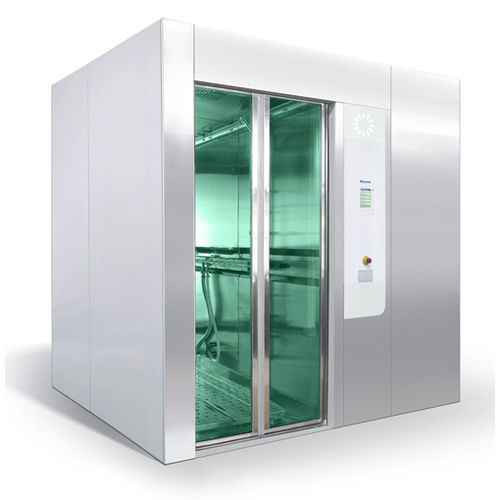

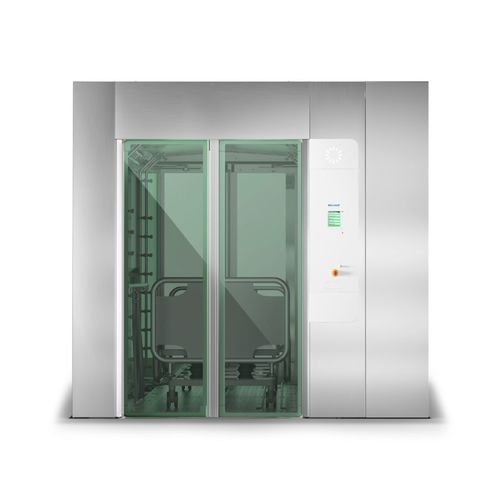

Glass sliding door and internal cabin illumination provide visual process control. A patented process status display gives immediate feedback to operators. The machine can be supplied as a double-door push-through unit to separate contaminated and clean zones. Multiple chamber lengths and two width options allow adaptation to site requirements.

Applications

• Transport carts and trolleys
• Containers and trays
• Operating room (OR) tables
• Bed frames and related large items

Key features

• Cleaning, disinfection and hot-air drying for large items
• Up to 10 cycles per hour (depending on program and load)
• Extremely low water consumption; optional integrated water recycling
• Cold-water pre-cleaning for containers, bowls and OR shoes
• Modular chamber lengths and adjustable usable height/width
• Double-door push-through layout to maintain separation of dirty/clean areas
• Inclined loading and hot-air drying system to improve drying results
• Robust mechanical construction for high availability
• Options for automated loading/unloading and integration into transport systems
• SmartHub digital monitoring for real-time machine and program data

Performance & benefits
The CS 750 is engineered for resource-efficient operation with reduced consumption of water, chemicals and heating energy. Integrated water recycling further lowers water use. Automation options reduce manual handling and staff workload. Depending on configuration and program, bed frame reprocessing can be achieved in under 10 minutes per frame.

Digital solutions
SmartHub captures and visualizes machine and program data for real-time monitoring, data logging and analysis. SmartHub supports on-premise or cloud deployment and enables preventive maintenance and quality records.

Certifications
The Belimed CS 750 complies with EN ISO 15883-7 and follows the latest guidance from the Working Group for Bedframe and Cart Decontamination Systems.

Configurations
CS 750S — Outer dimensions (HxWxD): 2,800 x 2,970 x 2,250 mm | Pit depth / ramp height: 120 mm | Usable chamber volume: 2,700 l
CS 750M — Outer dimensions (HxWxD): 2,800 x 2,500/2,700 x 3,470 mm | Pit depth / ramp height: 120 mm | Usable chamber volume: 4,600 / 5,520 l
CS 750L — Outer dimensions (HxWxD): 2,800 x 2,500/2,700 x 4,120 mm | Pit depth / ramp height: 120 mm | Usable chamber volume: 5,900 / 7,080 l

Technical specifications

• Model: CS 750
• Cycles: up to 10 cycles/hour (typical, dependent on program and load)
• Door: glass sliding door with cabin illumination
• Layout: double-door push-through option (separates contaminated and clean sides)
• Pre-cleaning: cold-water pre-clean for containers and small items
• Drying: hot-air drying system with inclined loading
• Modularity: multiple chamber lengths; two width options; adjustable usable height/width
• Resource efficiency: very low water consumption; optional integrated water recycling
• Automation: optional automated loading/unloading and transport integration
• Digital: SmartHub for monitoring, logging and visualization
• Compliance: EN ISO 15883-7
• Pit depth / ramp height (series): 120 mm
