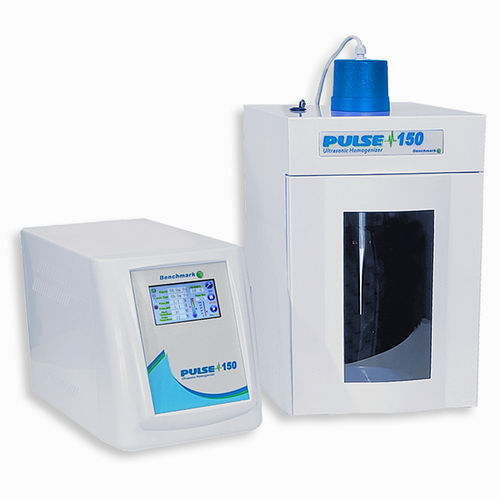

Ultrasonic homogenizer Pulse 150

sample preparationfor cell disruptionbenchtop

Ideal for cell disruption, DNA shearing and ChIP assays Programmable with touch screen control and pulsed operation 150W, for volumes 0.1 to 150 ml (requires appropriate horn) Supplied complete with 6mm horn, temperature probe and soundproof enclosure Specifications Power - 1.5 - 150 W continuously adjustable - Frequency - 20 - 25 KHz - Cycle time (pulse on/off) - 0.1 - 99.9 sec - Timer - 1 sec - 99 hours:59m min:59 sec - Duty cycle - 0.1 - 99.9% - Volume* - 0.1 - 150 ml - Program memory - 20 programs - Display/control - 4.3 inch full color touch screen - Horn - 6mm titanium (2mm/4mm/8mm also available) - Alarms - No load/over load/end of run/over temperature - Controller W x D x H - 12 x 18.5 x 16.9 in./30.5 x 47 x 43 cm - Controller weight - 35.3 lbs/16 kg - Soundproof enclosure W x D x H - 13.8 x 13.8 x 21.7 in./35 x 35 x 55 cm - Soundproof enclosure weight - 22 lb/10 kg - Electrical - 120V or 230V 50-60 Hz - Warranty - 2 years - *Volume dependent upon the installed horn. Supplied with 6mm horn for volumes 10 - 100 ml. The Pulse 150 Ultrasonic Homogenizer uses cavitation and ultrasonic waves to break cells in suspension, shear DNA and prepare samples for ChIP assays. With up to 150 watts of power, the unit processes samples from 0.1 ml to 150 ml (with the appropriate horn). All components needed for homogenization are included with the Pulse 150 – a controller, transducer, temperature probe, 6 mm diameter titanium alloy horn and wrenches to change horns. A soundproof box with sample platform is also supplied as standard.
