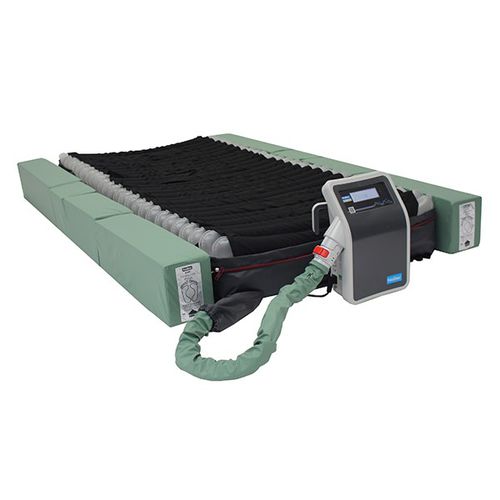

The mattress is made up of 20 air-cells placed transversely with a 15-minute cycle time which is designed to reduce the requirement for nursing staff to reposition heavy patients.
Features
Pump with adjustable pressure setting
Microclimate control
3 cell cycle alternating pressure
15-minute air cycle
Benefits
Able to cater for a range of patient weights
Width expansion can be performed while patient is in situ
Effective for the treatment of pressure injuries
Decreases risk of pressure injury
Reduction to interface pressure
Elimination of interface pressure
Infection control compliant
Mattress Data
Extended 1200mm
Height 200mm
Weight 11kg
Flammability Rating Complies with BS7175 Ignition Source 0, 1 and 5
Power Unit
Dimensions (L x W x H) 350 x 180 x 380 mm
Weight 6.8kg
Power Supply 230 V ~ ±10%, 50 / 60 Hz
Power Consumption max. 40W
Current 0.35A
Ingress Protection Rating IP42
Classification Class B Medical Device Class II protection
Fuses 2 x T 1,6 A, 250 V ~ 5 x 20 mm
Operating Cycle Continuous
Flammability Rating UL94 V-0
Ambient Temperature +10°C to +30°C
Relative Humidity 30% – 75% non condensing
Atmospheric Pressure 700hPA – 1060hPA
