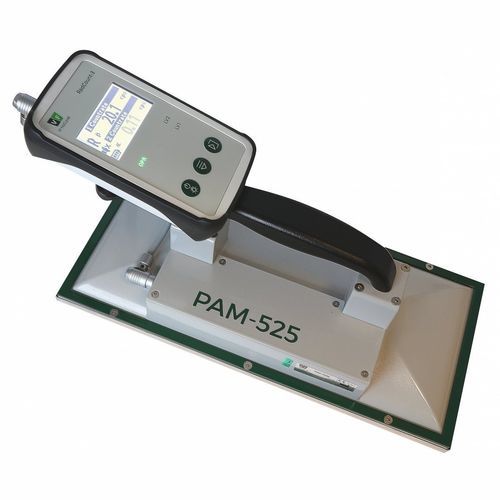

Gamma ray area dosimeter PAM-525

Beta rayAlpha ray

Short description
Handheld portable instruments for simultaneous measurement of alpha/beta surface contamination and ambient gamma dose equivalent rate. Available in single- or dual-channel models (PAM-525B/PAM-525C) with a gasless scintillation detector and up to 200 hours battery life.

Applications

• Nuclear facilities and power plants
• Waste management and decommissioning
• Ionizing radiation metrology and calibration
• Nuclear medicine departments
• Non-nuclear industry and emergency monitoring

Key Features

• Simultaneous measurement of alpha/beta surface contamination and ambient gamma dose equivalent rate
• Large active detector area for rapid area surveys
• User-friendly handheld design
• Gasless scintillation detector with two photomultipliers for high efficiency and uniform response
• Quick replacement of the detector light-tight foil
• Integrated rechargeable battery providing up to 200 hours operation
• Two pre-settable alarm levels
• Easy decontamination and maintenance

Description
The PAM-525 series are portable hand-held meters designed primarily for alpha/beta surface contamination monitoring. The large detectors enable fast inspection of extended surfaces. Two standard configurations are offered:

• PAM-525B – single-channel instrument with optimized sensitivity to beta contamination
• PAM-525C – dual-channel instrument distinguishing alpha and beta contamination with slightly lower beta sensitivity than PAM-525B

The gamma dose equivalent rate measurement is independent from surface contamination measurement and provides an additional alarm to operators in case of elevated ambient radiation.

Technical specifications

• Model / series: PAM-525
• Available models: PAM-525B (single channel), PAM-525C (double channel)
• Measured quantities: surface contamination (alpha, beta) and ambient gamma dose equivalent rate
• Detector: gasless scintillation detector with two photomultipliers
• Detector features: large active area, high detection efficiency and uniformity
• Battery: integrated rechargeable battery, up to 200 hours operation
• Alarms: two pre-settable alarm levels
• Maintenance: quick replacement of detector light-tight foil; easy decontamination
• Use: portable hand-held monitoring for rapid area surveys
