Medical vacuum pump MEDEVICE 3×340 PBOmanualrotary vanelubricated
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- manual, rotary vane
- Options
- lubricated
- Flow
340 m³/h, 405 m³/h, 1,020 m³/h, 1,215 m³/h
(12,006.99 ft³/h, 14,302.44 ft³/h, 36,020.96 ft³/h, 42,907.32 ft³/h)- Power
7.5 kW, 9.2 kW, 15 kW, 18.4 kW
(10.2 hp, 12.51 hp, 20.39 hp, 25.02 hp)- Pressure
10 mbar
(0.15 psi)- Tank volume
1,000 l
(264.2 gal)- Weight
950 kg
(2,094.4 lb)
Description

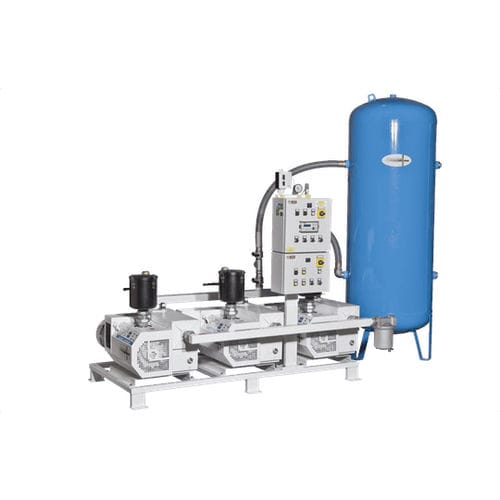

Vacuum system consisting of 3 rotary vane vacuum pumps with oil injection lubrication, horizontal frame, vertical tank, primary electrical panel, emergency electrical panel and double bactericidal filter.
The pumps are equipped with:
vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
