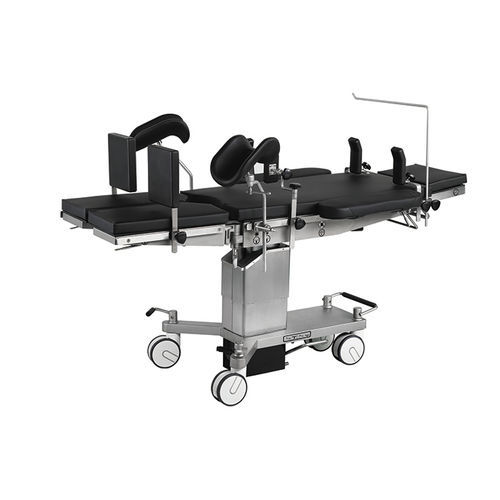

universal operating table / mechanical / manual / Trendelenburg
BIOT003M

{{requestButtons}}

Characteristics

  • Applications:

    universal

  • Operation:

    mechanical, manual

  • Features:

    Trendelenburg, height-adjustable, reverse Trendelenburg, tilting, X-ray transparent, ergonomic, on casters

Description

Manual Operating Table/BIOT003M/BiHealthcare
High quality mechanical system ensure the high performance. Quick and stable movements
First class materials, durable and reliable Most convinient control switch and easy transfer
Features:
Manual system
Single layer radiolucent table platform
Gas spring leg control
Kidney bridge
Main materials: 304 stainless steel
(Optional)Dual layers radiolucent table platform
Accessories:
Anaesthesia screen frame
Shoulder support
Arm support
(Optional)Hand support
Body support
Leg support
Foot support
(Optional)Fluid basin
(Optional)Orthopaedics traction frame
(Optional)Spondyle operating support
Kidney bridge control handle
(Optional)Memory mattress
Foam mattress
Specifications
Table length & width 2000x500mm
Min. Height 670mm
Max. Height 970mm
Trendelenburg 30°
Reversed trendelenburg 25°
Left lateral 20°
Right lateral 20°
Head plate up/down 60° /75°
Back plate up/down 70° /30°
Leg plate up/down 15° /90°
Leg plate swing out 90°
Kidney bridge elevation 120mm
Load capacity 250kg
