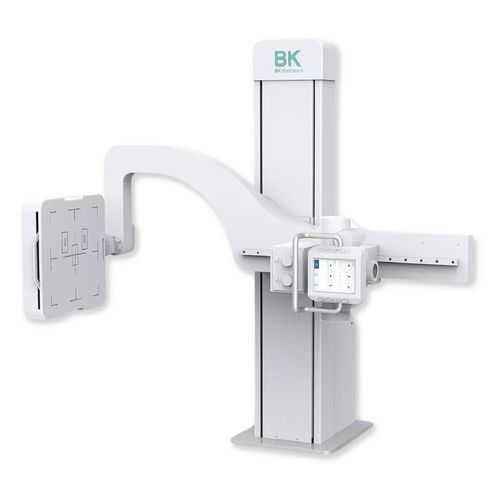

Digital veterinary X-ray system Model U
with table

Digital veterinary X-ray system - Model U - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Digital veterinary X-ray system - Model U - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Digital veterinary X-ray system - Model U - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table - image - 2
Add to favorites
Compare this product
Go to the Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. website for more information

Characteristics

Technology
digital
Ergonomics
with table

Description

Overview
  • Veterinary digital radiography system designed for examinations across animal body types with multi-position imaging and one-key operation.
  • Core components with FDA certification.


Key features
  • 17 × 17 inch flat panel detector using Cesium iodide (CsI) with amorphous silicon (a-Si)
  • Pixel size: 139 μm; Pixel matrix: 3072 × 3072; A/D conversion: 16 bit
  • Multi-position full-viewing angle and U-Arm with wide SID range
  • Static high-voltage generator: 220 V supply, nominal power 32 kW
  • Canon X-ray tube with focus sizes 0.6 mm / 1.2 mm and 230 kHU anode heat capacity
  • Animal-dedicated multifunctional static image acquisition and processing software


Technical specifications
  • Detector: Flat panel, 17 × 17 inches, CsI (Cesium iodide) + a-Si
  • Pixel size: 139 μm
  • Pixel matrix: 3072 × 3072
  • A/D conversion: 16 bit
  • Supply voltage: 220 V
  • Nominal power: 32 kW
  • Maximum kV: 150 kV
  • Maximum mA: 400 mA
  • X-ray tube (Canon): Tube focus size 0.6 mm / 1.2 mm; Anode heat capacity 230 kHU; Focus power (50 Hz): large 50 kW; small 20 kW
  • U-Arm: Lift 430–1700 mm; SID variation 900–1820 mm; Rotation −35° to +130°
  • Lateral table support size: 1200 × 600 × 240 mm
  • Software: Animal-dedicated multifunctional static image acquisition and processing system
