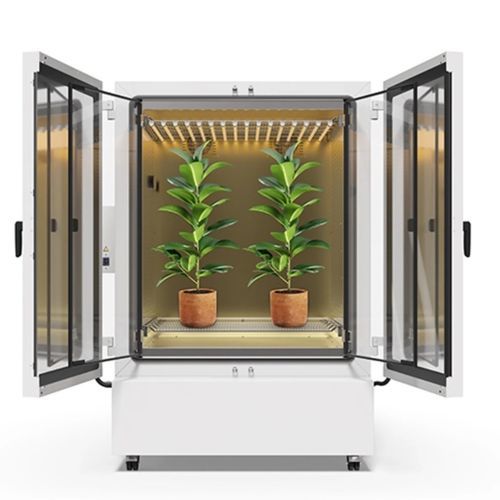

Plant growth test chamber KB PRO series

thermostaticclimatichumidity

Definition
A plant growth system combining a refrigerated incubator (KB PRO) and a retrofit BINDER LED plant light module to reproduce defined climate and lighting conditions for isolated, reproducible plant experiments.

Structure and function
The base units are climate chambers of the KBF and KBF PRO series (temperature and humidity control) and the KB PRO refrigerated incubators. The BINDER LED plant light module is retrofittable: the control unit mounts externally at prepared fixing points and the LED strips clip to the internal racks. Power and fresh-air lines are routed through the access port and sealed.

Applications

• Agronomy and agrobiology
• Horticulture, fruit production, viticulture, ornamental plant cultivation
• Plant genetic engineering
• Phytobiology and photobiology
• Plant physiology and genetics
• Crop protection and phytomedicine
• Entomology

Selection criteria / important information

• Humidity control: Choose KBF or KBF PRO as the base unit if humidity regulation is required. Typical operating ranges with the BINDER LED module: 10°C–50°C and 10%–50% RH (KBF) or 10%–90% RH (KBF PRO).
• CO2 control: The LED module includes a pump that introduces ambient air to maintain atmospheric CO2 (~0.04 vol.%). For elevated CO2, add the optional CO2 gassing module (0.05%–1.0% vol.).
• Light quality: The module comprises up to 16 individually positionable LED strips with three independent channels (cold white, warm white, deep red). Combined channels approximate the solar spectrum; deep red targets phytochrome responses. Maximum PAR is reached when all 16 strips are installed.
• Installation: The control unit is fixed externally with supplied rails and screws; LED strips clip under standard racks with metal clamps (tool-free) and are repositionable. Cables and fresh-air hose pass through the oval access port and are sealed with silicone foam plugs.

BINDER LED plant light module — features and scope
The system consists of up to 16 individually positionable LED strips. Each strip contains three color channels (warm white, cold white, deep red) controllable separately. Channels can be switched, dimmed and programmed in real time. The system offers a twilight function and a fresh-air function. In full configuration, irradiance (PAR) can reach solar levels.

Delivery content

• 16 LED strips with retention clips
• Light control unit with program controller, power supply and fresh-air pump
• Support rails and screws to mount the control unit
• Silicone foam plugs to seal the access port
• Cabling

Control unit functions

• Three color channels, individually dimmable from 10% to 100%
• Real-time programming
• Twilight function
• Fresh-air / ventilation function

Recommended accessories

• Rack sets for securing the LED strips
• Optional: sample temperature control sensor
• Optional: CO2 gassing / control module (0.05%–1.0% vol. CO2)

Compatibility and sizes
The LED system is compatible with KBF, KBF PRO and KB PRO in volumes 260 L, 470 L, 720 L, 1060 L and 1600 L.

Technical specifications

• Brand: BINDER
• LED system: up to 16 LED strips, 3 independent color channels (warm white, cold white, deep red)
• Control unit: dimming 10%–100%, real-time programming, twilight function, fresh-air pump
• CO2 control: ambient maintenance via pump; optional CO2 module 0.05%–1.0% vol.
• Compatible base units: KBF (15°C–50°C; 10%–50% RH), KBF PRO (−10°C–60°C; 10%–90% RH), KB PRO (−10°C–60°C; no humidity control)
• Available volumes: 260 L, 470 L, 720 L, 1060 L, 1600 L
• Mounting: external control unit; clip-on LED strips; oval access port sealed with silicone foam plugs
