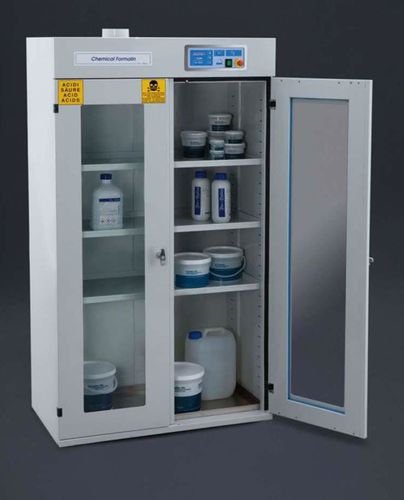

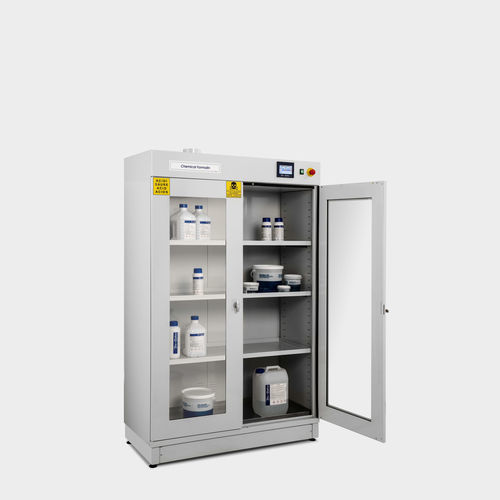

Key cabinet 50-120-603

filteringemergencyfor chemical products

Safety aspirate cabinet designed to contain chemicals (acids and bases). STRUCTURAL FEATURES  Electrozinced sheet steel structure, doors and shelves, thickness 12/10, painted with grey (RAL 7035) antiacid epoxy powder.  Double door in 6/7 mm accident prevention stratified glass provided with closing on 3 points, lock and 180° opening in order to make the shelves moving easier. Yellow danger signs in conformity with the regulations in force.  N. 3 extractable shelves with adjustable height, tray shaped in order to contain incidental liquid leaks. Capacity 50 Kg.  N. 1 AISI 304 stainless steel bottom tray, thickness 12/10, for the collection of incidental liquid leaks.  Palletized base.  N. 4 antiantistatic and antislip adjustable feet allow to get a perfect horizontal position.  Value of aspiration 0,50 m/s.  Visual and acoustic alarm for open door. The ventilation goes automatically at maximum power in order to safeguard the safety of the operator.  Flow 300 m³/h. CONTROL PANEL Touchscreen monitor for the control and visualization of all the functions. MAIN FUNCTIONS  General ignition switch.  Emergency switch.  Start/stop switch for aspiration working.  Fan speed regulation with graphic bar of percentage visualization.  Key fast adjustment of fan speed measured in percentage.  Visual and acoustic alarm in case of filters saturation.  Visual and acoustic alarm for open door.  Visual and acoustic alarm in case of exhausted uv lamp.  Acoustic alarms silencing key.  Filter’s change planning. ASPIRATION / FILTRATION SYSTEM  N. 1 preinstalled anti-spark electrofan with adjustable speed.
