Not specified milling machine BKBM-V0.4

4-spindleverticalwet machining

Product overview

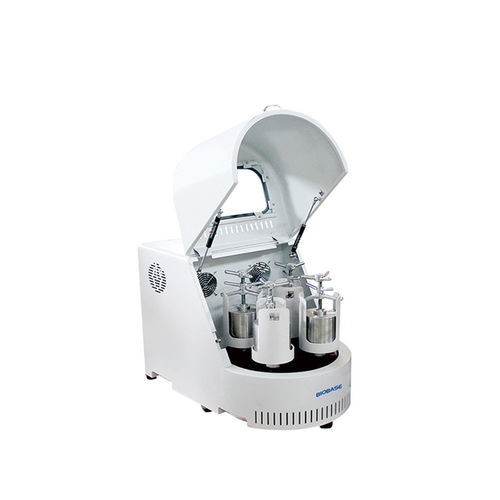

Planetary ball mill with four grinding pots mounted on a single turntable. When the turntable rotates, each pot axis performs planetary motion causing high‑speed impacts between grinding balls and samples; materials are reduced to powder by dry or wet grinding. Minimum achievable particle size: 0.1 μm.

General information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Model: BKBM-V0.4; BKBM-V2

Features

• 3D curved semi‑circle chamber design for stable planetary motion.
• Gear transmission engineered for low noise and reliable torque.

Technical Parameters
Model — BKBM-V0.4 | BKBM-V2
Capacity — 0.4L | 2L
Pot volume — 50~100ml | 50~500ml
Pot quantity — 4 pcs
Running time range — 1~9999min
Reciprocal running time — 1~999min
Revolution (adjustable) — 45~435rpm | 35~335rpm
Rotation speed — 90~870rpm | 70~670rpm
Noise — 58±5dB | 60±5dB
Speed control — Frequency control (stepless)
Transmission — Gear drive
Working mode — 2 or 4 pots can be used each time
Maximum sample volume (material + balls) — 2/3 of pot volume
Feed size — Soft/crispy <10mm; other materials <3mm
Output granularity — down to 0.1 μm
Power consumption — 0.25KW | 0.75KW
Power supply — AC110/220V±10%, 50/60Hz
External size (W*D*H) mm — 530*300*340 | 750*470*565
Package size (W*D*H) mm — 595*360*485 | 820*530*720
Net weight (kg) — 29 | 80
Gross weight (kg) — 50 | 100
Note: Pots and grinding balls optional. For 2L model, using 25ml or 50ml pots requires separate base holder.

Specifications

• Models: BKBM-V0.4, BKBM-V2 (BKBM-V series)
• Capacities: 0.4 L and 2 L
• Minimum output granularity: 0.1 μm
• Control: Frequency converter with stepless speed regulation
• Transmission: Gear drive
• Operation: 2 or 4 pots usable simultaneously
• Maximum fill: 2/3 of pot volume
