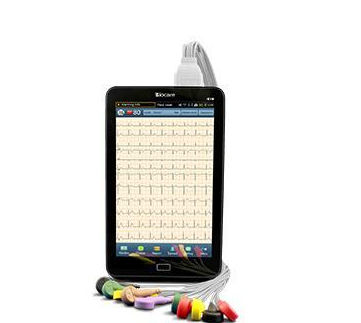

Resting electrocardiograph iE 1012-channeldigitalwith printer
Add to favorites
Compare this product
Characteristics
- Applications
- resting
- Number of channels
- 12-channel
- Technology
- digital
- Options
- with printer, with touchscreen
- Connectivity
- Wi-Fi
- Screen size (inches)
7 unit
Description
Features
Accuracy and reliability in ECG interpretation
Streamlined workflow, clinical-oriented operation
Data management solutions
Technical specifications
- Approximately 0.5 kg weight for portable use
- 7.0-inch capacitive touch LCD, 1280 x 800 resolution
- Selectable horizontal or vertical screen orientation
- Built-in rechargeable battery, up to 4.0 hours continuous operation
Accuracy and reliability in ECG interpretation
- Biocare CardioProTM ECG analysis software, validated against the CSE database
- 12-lead simultaneous acquisition for complete waveform capture
- Complete digital filters with self-adapting filtering to reduce noise
- Rhythm analysis up to 300 seconds to facilitate arrhythmia localization
- Application of the latest Minnesota code for standardized interpretation
Streamlined workflow, clinical-oriented operation
- Onscreen operation guide to verify correct ECG procedure
- Multi-language voice prompts and visual alarms for lead-off and low battery
- Configurable general settings for clinician and patient use scenarios
- Three report formats: simple, median beat and detailed reports
- Supports external laser printer for immediate hardcopy reporting
Data management solutions
- Local storage capacity up to 1,500 files
- Upload ECG data to management software via WiFi for integration
Technical specifications
- Weight: ~0.5 kg
- Display: 7.0-inch capacitive touch LCD, 1280 x 800
- Orientation: selectable horizontal or vertical
- Battery: built-in rechargeable, up to 4.0 hours continuous use
- ECG analysis: Biocare CardioProTM (CSE-validated)
- Acquisition: 12-lead simultaneous
- Filtering: full digital filters with self-adapting filtering
- Rhythm analysis: up to 300 seconds
- Standards: latest Minnesota code applied
- User assistance: onscreen operation guide; multi-language voice prompts; visual alarms for lead-off and low battery
- Reporting: simple, median beat and detailed report formats
- Printing: supports external laser printer
- Storage: local capacity up to 1,500 files
- Connectivity: WiFi upload to ECG management software
