Clinical analysis data acquisition system DataLITE PIONEER

laboratorymulti-channelUSB

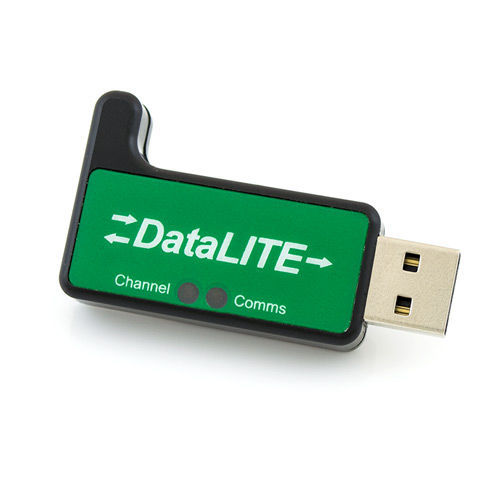

DataLITE PIONEER offers a simple, low-cost solution for advanced analysis of EMG activity and other physiological parameters. PIONEER, a wireless dongle communicates data between DataLITE sensors and a Windows 10 PC, Laptop or Tablet. Data is displayed and recorded directly to the computer to be analyzed in the Biometrics Analysis Software or exported for analysis purposes or streamed to third-party software. Wireless DAQ Receiver Communicates with up to 24 channels of DataLITE wireless sensors A typical work environment will give up to a 30m working range Several DataLITE systems may be set up in the same working environment Available as a non-medical or certified medical device DataLITE uses progressive frequency hopping, error detection and data recovery algorithms. This allows the readings to be smooth and robust even in the typical modern work environment which utilises many different types of Wi-Fi products. Communications between a DataLITE interface and sensors use 4 frequencies out of a possible 32; these are evenly spaced in the range of 2.403 GHz to 2.480 GHz. DataLITE wireless sensors convert input signals such as joint angle, EMG or force data and transmits in real-time to the PC for analysis. This produces a versatile and expandable design with the greatest possible accuracy, negligible drift and the greatest freedom for the test subject. Dimensions - 54 x 30 x 10 mm Mass - 12 g Portable - When plugged into Laptop / Tablet Sensor WiFi Range - 30 m Real-Time Data Display - PC Number of Channels - 16 sensors for up to 24 channels Latency - Sensors to PC Recording - 40 mS Wireless Transmission Loss - Tolerant for 100 mS
