Laboratory shaker with incubator ES-20/60

orbitalbuilt-in

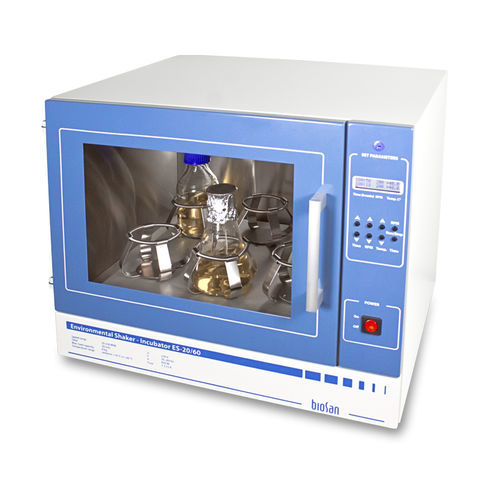

Orbital Shaker–Incubator ES-20/60 for biotechnological and pharmaceutical laboratories is a professional category equipment designed for cultivation of microorganisms and eukaryotic cells including animal, plant and insect cells. It is also possible to cultivate thermofilic bacteria in ES-20/60 shaker-incubator. Shaker is equipped with a direct-drive mechanism for platform motion. It provides reliable and stable operation for the long term experiments needed for cell growth. Shaker–Incubator ES-20/60 provides smooth or intensive mixing in flasks installed on the platform. Built-in noiseless thermoresistant brushless fan provides precise temperature distribution inside the chamber (adjustable for up to +80°C). The inner chamber is made of stainless steel. State–of–the–art motor, newest thermal insulation materials, soft-start of the platform motion and temperature PID–control decrease the energy consumption and make the Shaker–Incubator highly energy efficient despite its relatively large size. Specification Temperature stability - ±0.5°C Temperature setting resolution - 0.1°C Temperature accuracy at +37°C - ±2°C Temperature uniformity at +37°C - ±2°C Orbit - 20 mm Display - LCD, 2 × 16 signs Digital time setting - 1 min–96 hrs / non–stop (1 min increment) Timer sound signal - + Maximum load - 8 kg Maximum continuous operation time - 30 days Dimensions of the inner chamber - 460 × 400 × 310 mm Overall dimensions (W×D×H) - 590 × 525 × 510 mm Weight - 41.1 kg Power consumption (230V / 120 V) - 450 W (2 A) / 450 W (4.5 A) Nominal operating voltage - 230 V, 50/60 Hz or 120 V, 50/60 Hz
