laboratory microscope / optical / binocular / fluorescence
imLD | 84201

{{requestButtons}}

Characteristics

  • Applications:

    laboratory

  • Type:

    optical

  • Ergonomics:

    binocular

  • Observation technique:

    fluorescence

  • Other characteristics:

    halogen

Description

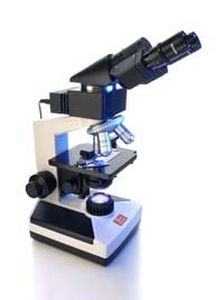

Fluorescence Microscope i-mLD

- Optical System Infinity corrected plan objectives (10x, 20x and 40x)
- Head and Eyepieces: WF10X paired eyepiece. Binocular diopter adjustment. Trinocular optional.
- Mechanical Stage: Easy movement. Drop handle type right hand low drive coaxial mechanical stage (120 mm x 140 mm with traverse area of 50 mm x 76 mm).
- Focusing system: Co-axial coarse & fine controls.Coarse Focus Range 28mm. Fine Focus Range 0.02 mm.
- Bright field ilumination: 6 V, 20 W, halogen lightsource.
- Fluorescence Light Source: High power blue LED (470-480 nm)
- Fluorescence filters: FITC
- Power supply: 110-240V AC. 50Hz. Single Phase
