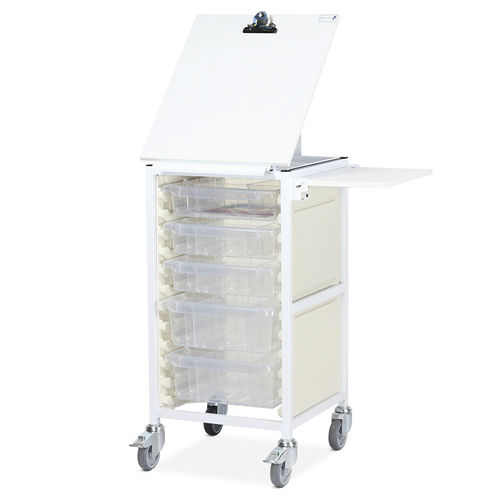

Hospital trolley CTCHARM1/10/3S2D

for medical recordsstorageplastic

FEATURES

• Single & double column easy-clean fixed-height chart trolleys
• Angle-adjustable chartboard fitted with a spring clip (adjustable 7°–45°)
• Lower lip on chartboard to support pens and accessories
• Quick and easy disassembly to assist thorough deep cleaning
• Fully welded mild steel frame
• Recyclable one-piece polypropylene side panels with smooth surfaces and radiused edges to assist cleaning (compatible with steam cleaning)
• Side panels incorporate runners with positive stops to prevent trays being accidentally withdrawn (symmetrical design allows tray insertion from either side)
• Carerails fitted to either side (2 x left-hand, 1 x right-hand) to support a wide range of accessories
• Drop-down work flap fitted to right-hand side
• Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges to assist cleaning (compatible with steam cleaning / high-temperature machine washing)
• Trays feature an integral handle with plastic clip-on label cover (coloured labels supplied: white, blue, green, yellow and red)
• 100 mm and 150 mm deep trays, subdividable in both length and width using removable dividers (maximum load 5 kg)
• 2 long and 2 short dividers supplied with each tray
• 100 mm pressed-steel castors, two braked

DIMENSIONS (w x d x h)
Overall Dimensions:
Single Column: 550 x 665 x 1115–1450 mm
Double Column: 1005 x 665 x 1115–1450 mm

Usable Chart Area:
Single Column: 500 x 530 mm
Double Column: 800 x 530 mm

Work Flap:
420 x 290 mm (w x d)

Trays:
Shallow Tray - 355 x 405 x 100 mm (internal)
Deep Tray - 355 x 405 x 150 mm (internal)

STANDARD COLOURS

• Paint - White
• Chartboard / Work Flap - White

TECHNICAL SPECIFICATIONS

• Series / Commercial name: Caretray Trolley - Chart
• Manufacturer / Brand: Bristol Maid
• Frame: Fully welded mild steel
• Side panels: Recyclable one-piece polypropylene (smooth, radiused edges)
• Chartboard: Angle adjustable 7°–45° with spring clip
• Tray materials: Translucent, impact-resistant polypropylene (compatible with steam cleaning / high-temperature machine washing)
• Tray depths: 100 mm and 150 mm (internal)
• Tray subdivision: Removable dividers; 2 long + 2 short supplied per tray; maximum load per tray 5 kg
• Tray handling: Integral handle with plastic clip-on label cover (coloured labels supplied: white, blue, green, yellow, red)
• Access / security: Side-panel runners with positive stops to prevent accidental withdrawal
• Accessories: Carerails fitted (2 left-hand, 1 right-hand); drop-down work flap on right-hand side
• Castors: 100 mm pressed-steel castors, two braked
• Variants: Single column and double column configurations
• Usability: Quick and easy disassembly for deep cleaning
