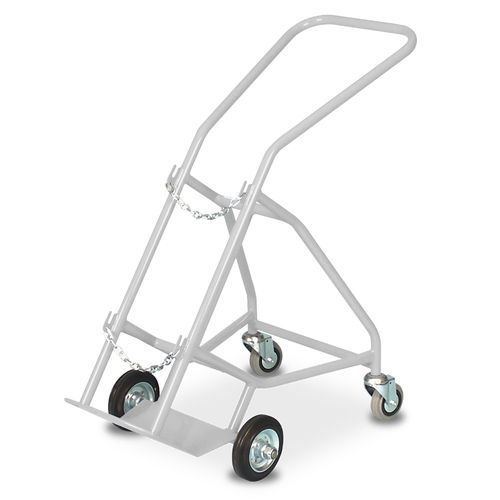

Hospital trolley CYT/FG1/ST

for gas cylinders1-cylindermobile

FEATURES

• Compatible with F (48 cu ft), HX, LF, VF, ZX & G (120 cu ft) cylinders; maximum cylinder diameter 200 mm, maximum cylinder height 1350 mm
• One piece construction
• Drop-over chains secure the cylinder
• Stabilising castors at rear of trolley reduce the likelihood of tipping during transportation
• 160 mm anti-static wheels and 100 mm swivel castors

OVERALL DIMENSIONS (W x D x H)
520 x 700 x 1145 mm

STANDARD COLOURS

• Paint - Grey White

PRODUCT TABLE
Code: CYT/FG1/ST
Description: F/G Size
Overall Dimensions (W x D x H): 520 x 700 x 1145 mm

TECHNICAL SPECIFICATIONS

• Product name: Cylinder Trolley with Stabilisers
• Compatibility: F (48 cu ft), HX, LF, VF, ZX and G (120 cu ft) cylinders
• Maximum cylinder diameter: 200 mm
• Maximum cylinder height: 1350 mm
• Construction: One piece
• Retention: Drop-over chains
• Wheels / castors: 160 mm anti-static wheels; 100 mm swivel castors; stabilising rear castors
• Overall dimensions (W x D x H): 520 x 700 x 1145 mm
• Standard finish: Paint - Grey White
