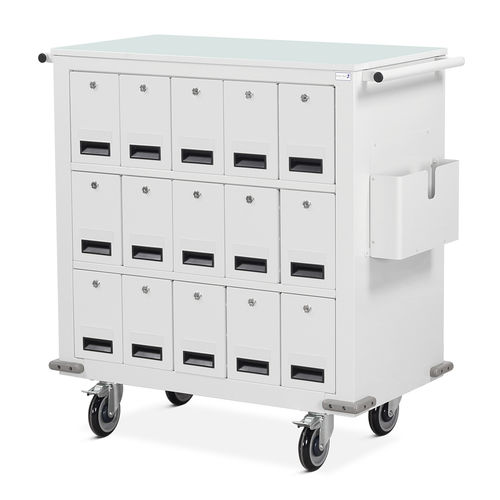

Hospital trolley SA005

for medicinemedicine distributionwith drawer

FEATURES

• Trolleys designed for ward drug and medicine distribution and patient self-administration programmes
• Secure drawer system: drawers lock to the trolley to prevent unauthorised removal
• Drawers fitted with a CAM lock (supplied with two keys)
• Maximum load per drawer: 3 kg
• Standard 'locks to differ' option enables each ward to hold its own key; pharmacy retains remaining key
• Master key option available (additional cost)
• Upper work surface for preparation
• Push handles at both ends for manoeuvrability
• Document pocket fitted to end of trolley
• Low-level corner bumpers protect trolley and surroundings
• 125 mm pressed-steel castors, two braked

OVERALL DIMENSIONS (W x D x H)
Code | Description | Overall Dimensions (W x D x H)
SA005 | Distribution Trolley - 15 Drawers | 1026 x 523 x 1002 mm
SA025 | Distribution Trolley - 18 Drawers | 1180 x 523 x 1002 mm
Drawer (internal) | — | 145 x 423 x 230 mm

STANDARD COLOURS

• Paint: Grey White
• Work Surface: Spearmint

OPTIONS / ACCESSORIES

• Master keys (available at additional cost)
• Optional security clamp (accessory available separately)

TECHNICAL SPECIFICATIONS

• Application: drug and medicine distribution; suitable for patient self-administration schemes
• Locking: CAM-lock drawers supplied with two keys; 'locks to differ' standard option
• Master key available as an option (extra cost)
• Maximum drawer load: 3 kg
• Drawer internal dimensions: 145 x 423 x 230 mm
• Overall dimensions: SA005 = 1026 x 523 x 1002 mm; SA025 = 1180 x 523 x 1002 mm
• Upper work surface included
• Push handles both ends; end-mounted document pocket
• Low-level corner bumpers to protect trolley and interiors
• Castors: 125 mm pressed-steel, two braked
• Finish: Grey White paint; Spearmint work surface
