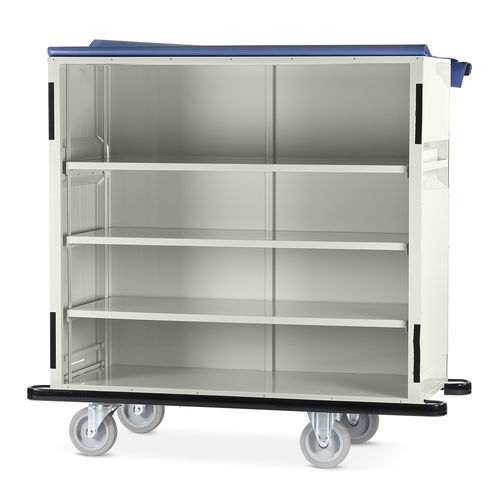

Clean linen trolley WT/48 series

hospitallaundrydistribution

FEATURES

• Designed for bulk linen delivery, linen exchange systems or as an alternative to dedicated ward linen rooms
• Mild steel frame with lightweight aluminium cladding and shelves
• Three adjustable shelves plus base (max 45 kg per shelf)
• Shelf size: 1,430 x 555 mm (W x D)
• Inset push handles at both ends
• Low-level bumper bar protects trolley and surrounding fabric
• Optional tow bar: fitted to front (swivel castor) with antiluce fastener at rear (fixed castor); tow bar position approx. 360–380 mm above floor; recommended max towing speed 7 kph
• 200 mm heavy-duty castors (2 fixed, 2 swivel)
• Maximum capacity per trolley: 180 kg

OVERALL DIMENSIONS (W x D x H)
1740 x 700 x 1620 mm
Internal dimensions: 1420 x 610 x 1295 mm


FLEXIBLE COVER

• Fire-retardant cover secured at top and drops to enclose front
• Weighted bottom hem with Velcro-style side fastenings

FOLD BACK DOORS

• Fold-back doors enclose the front and fold against push handles when opened*
• Drop-down bolt secures base of doors
• Drop-over latch with clasp for padlock (padlock not supplied)

STANDARD COLOURS

• Paint finish: Grey White

PRODUCT VARIANTS
Code | Description | Overall Dimensions (W x D x H)
WT/48/COVER | Clean Linen Trolley - Large, Flexible Cover | 1740 x 700 x 1620 mm
WT/48/FBD | Clean Linen Trolley - Large, Fold Back Doors | 1740 x 700 x 1620 mm
WT/48/FBD/TBAR | Clean Linen Trolley - Large, Fold Back Doors, Tow Bar | 1740 x 700 x 1620 mm
WT/48/COVER/TBAR | Clean Linen Trolley - Large, Flexible Cover, Tow Bar | 1740 x 700 x 1620 mm


TECHNICAL SPECIFICATIONS

• Frame: Mild steel
• Cladding & shelves: Lightweight aluminium
• Shelves: 3 adjustable + base; max 45 kg per shelf
• Shelf dimensions: 1,430 x 555 mm (W x D)
• Castors: 200 mm heavy-duty (2 fixed, 2 swivel)
• Maximum trolley capacity: 180 kg
• Overall dimensions: 1740 x 700 x 1620 mm
• Internal dimensions: 1420 x 610 x 1295 mm
• Tow bar position (if fitted): approx. 360–380 mm above floor
• Recommended max towing speed: 7 kph (for towed trolleys)
• Cover: Fire-retardant, weighted hem with Velcro-style side fastenings
• Doors: Fold-back with drop-down bolt and padlockable latch (padlock not supplied)
• Standard finish: Grey White paint
