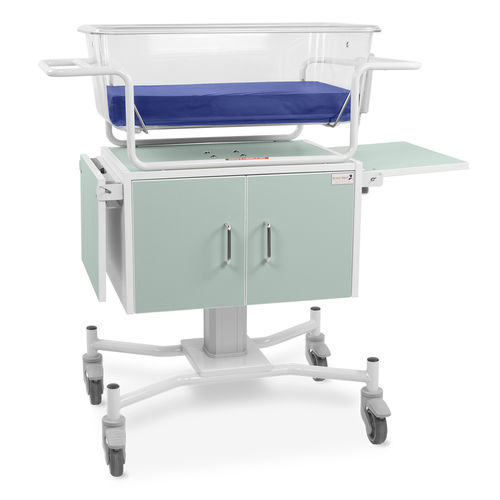

Hospital bassinet on casters BCV/B

height-adjustabletiltingwith storage unit

OVERVIEW

• Baby crib intended for neonatal bedside care and transport with electrically adjustable height and tilt functions.

FEATURES

• EN 60601-1:2006+A12:2014 compliance for medical electrical equipment
• Height adjustable via handset-operated, rechargeable battery powered telescopic column (700–910 mm)
• Supplied with one rechargeable battery* (battery must be removed from the unit when charging)
• Push handles at either end for manual manoeuvring
• Lower cupboard with fixed shelf for storage
• Crib tilts at either end (horizontal to approx. 6°)
• Two lift-up work flaps (maximum capacity 2.0 kg)
• Supplied with clear plastic crib (PETG) and flame-retardant mattress (maximum patient capacity 6.0 kg)
• 100 mm polymer braking castors

STANDARDS

• CE marked

DIMENSIONS (w x d x h)

• Overall: 940 x 510 x 700–910 mm
• Mattress: 635 x 330 x 75 mm
• Cupboard (internal, each side of column): 210 x 265 x 315 mm
• Work flap: 415 x 305 mm

STANDARD COLOURS

• Paint: Grey White
• Cabinet / Work Flaps: Spearmint / Grey White

PRODUCT VARIANTS / CODES
BCV/B — Baby Crib - Variable Height, Battery Operation, With Charger — 940 x 510 x 700-910 mm
BCV/B/NC — Baby Crib - Variable Height, Battery Operation, Without Charger — 940 x 510 x 700-910 mm
BCV/B/SA — Baby Crib - Variable Height, Battery Operation, With Charger - Sleep Angel Mattress — 940 x 510 x 700-910 mm
BCV/B/NC/SA — Baby Crib - Variable Height, Battery Operation, Without Charger - Sleep Angel Mattress — 940 x 510 x 700-910 mm

TECHNICAL SPECIFICATIONS

• Compliance: EN 60601-1:2006+A12:2014; CE marked
• Height adjustment range: 700–910 mm (handset operated, rechargeable battery powered telescopic column)
• Tilt: approx. 6° at either end
• Battery: supplied with one rechargeable battery (battery must be removed when charging)
• Work flaps: two lift-up flaps, max capacity 2.0 kg
• Mattress: flame-retardant, maximum patient capacity 6.0 kg; dimensions 635 x 330 x 75 mm
• Cupboard (internal): 210 x 265 x 315 mm (each side of column)
• Overall footprint: 940 x 510 mm; height 700–910 mm
• Castors: 100 mm polymer braking castors
• Standard finish: Paint Grey White; Cabinet / Work Flaps in Spearmint / Grey White
• Typical product codes: BCV/B, BCV/B/NC, BCV/B/SA, BCV/B/NC/SA
