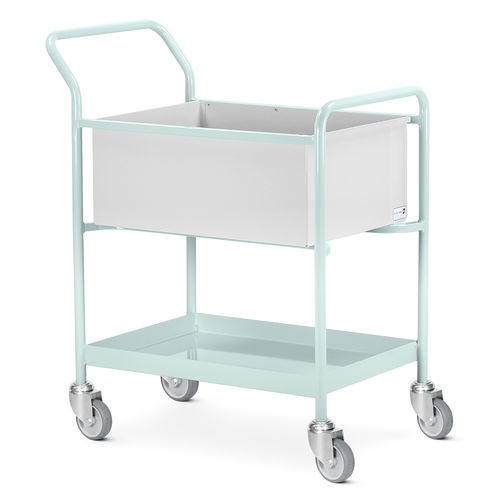

Transfer trolley MRT/TR/1B

for medical recordswith tray1-tray

Product overview

• Designed for transport of bulk case notes and X‑rays in clinical environments
• Records stored in a single upper box with an additional lower tray
• Two locking options: CAM key lock (supplied with two keys) or programmable 4‑digit electronic push‑button lock
• Maximum trolley capacity: 50 kg
• Optional ring buffers protect the trolley and surrounding fabric (adds approx. 80 mm to length and width)
• 100 mm pressed steel castors

Dimensions (W x D x H)

• Overall: 817 x 523 x 975 mm
• Internal box: 600 x 450 x 250 mm
• Top of box height (to floor): 805 mm

Standard colours

• Paint: Spearmint / Grey White

Variants / Codes
MRT/TR/1B | Open Top | 817 x 523 x 975 mm
MRT/TR/1B/CAM | Locking Lid, CAM Lock | 817 x 523 x 975 mm
MRT/TR/1B/EPB | Locking Lid, Electronic Push Button Lock | 817 x 523 x 975 mm


Options / Accessories

• Ring Buffers (optional)

Technical specifications

• Intended use: Transfer and storage of medical records and related documentation
• Storage arrangement: Upper box for records plus lower tray
• Locking: CAM key lock (2 keys) or programmable 4‑digit electronic push‑button lock
• Load capacity: 50 kg (maximum)
• Castors: 100 mm pressed steel
• Impact protection: Optional ring buffers (adds ~80 mm to length & width)
• Finish: Painted (Spearmint or Grey White)
• Key external dimensions: 817 x 523 x 975 mm; internal box: 600 x 450 x 250 mm
