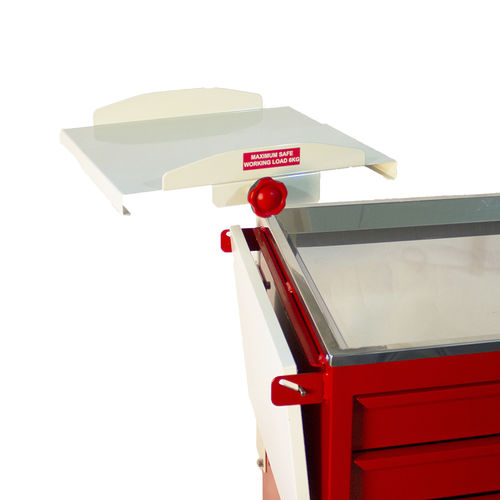

Medical tray WT/DEFIB
for trolleys

Medical tray - WT/DEFIB - Bristol Maid Hospital Metalcraft - for trolleys
Medical tray - WT/DEFIB - Bristol Maid Hospital Metalcraft - for trolleys
Add to favorites
Compare this product
Go to the Bristol Maid Hospital Metalcraft website for more information

Characteristics

Applications
medical
Function
for trolleys

Description

Features
  • Compatible with a range of popular external defibrillator units
  • Defibrillator supported on a 365 mm wide platform and retained by an adjustable clamp operated via a handwheel (205 - 380 mm)
  • Platform mounted on an arm that swings 90° from the worksurface and can be locked in position with a tensioning knob (arm rotates 360°)
  • Base of platform sits 150 mm above the top of the trolley
  • Fitted to the rear left-hand side of the trolley
  • Maximum load capacity 6 kg
  • Factory fitted


Technical specifications
  • Platform width: 365 mm
  • Platform clamp adjustment range (handwheel): 205 - 380 mm
  • Arm movement: swings 90° from worksurface, lockable with tensioning knob (360° rotation)
  • Base clearance above trolley top: 150 mm
  • Maximum load capacity: 6 kg
  • Mounting position: rear left-hand side of trolley
  • Fitting: factory fitted
  • Suitable for: a range of popular external defibrillator units


Overall dimensions (w x d x h)
477 x 365 x 642 mm (increases overall height by 185 mm)

Standard colours
  • Paint - Grey White


Installation & mounting
  • Fitted to rear left-hand side of trolley; factory fitted option
  • Ensure clamp setting and handwheel tightness before placing device
