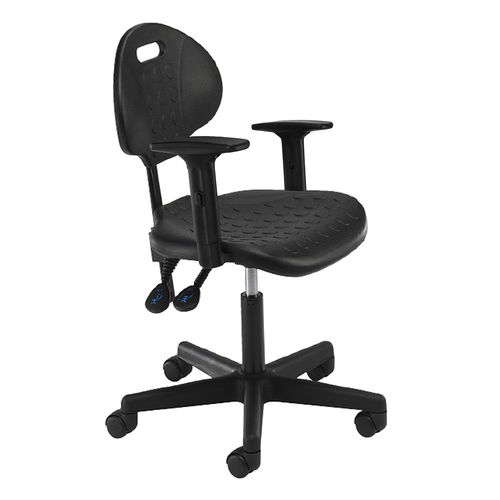

Laboratory chair 5PU4

with armrestson casterspneumatic

Overview

• Industrial technical seating range for workstation and process environments. Available in low, medium and high versions with polyurethane soft-touch seat.

Key features

• Two-lever mechanism: pneumatic seat height adjustment and back angle (locked or dynamic free float)
• Handwheel for back height adjustment
• Arm options: fixed ring arms or height-adjustable arms
• Medium chairs equipped with non-braking castors; high chairs supplied with foot ring and glides
• Black polypropylene five-star base
• Maximum user capacity: 150 kg

Available models / product table
5PU4 - PU Tech Chair, High, Foot Ring & Glides - 710 x 710 x 910 - 1270 mm
5TS/TEC/H/A/PU - Tech Chair, High, Ring Arms, Polyurethane - (dimensions not listed)
5TS/TEC/H/PU - Tech Chair, High, Polyurethane - (dimensions not listed)
5TS/TEC/H/AA/PU - Tech Chair, High, Adjustable Arms, Polyurethane - (dimensions not listed)
5PU6 - PU Tech Chair, Low, Castors - 670 x 670 x 750 - 980 mm
5TS/TEC/M/A/PU - Tech Chair, Medium, Ring Arms, Polyurethane - (dimensions not listed)
5TS/TEC/M/AA/PU - Tech Chair, Medium, Adjustable Arms, Polyurethane - (dimensions not listed)
5TS/TEC/M/PU - Tech Chair, Medium, Polyurethane - (dimensions not listed)
5PU5 - PU Tech Chair, Medium, Foot Ring & Glides - 710 x 710 x 830 - 1120 mm

Technical specifications

• Seat material: soft-touch black polyurethane
• Base: black polypropylene five-star base
• Adjustment: two-lever mechanism (pneumatic seat height; back angle locked or dynamic free float)
• Back height adjustment: handwheel
• Arm variants: fixed ring arms or height-adjustable arms
• Castors: non-braking on medium chairs
• High chair extras: foot ring and glides
• Maximum user capacity: 150 kg
• Configurations: low, medium, high; ring arms or adjustable arms available
• Representative dimensions: 5PU4 (710 x 710 x 910 - 1270 mm), 5PU5 (710 x 710 x 830 - 1120 mm), 5PU6 (670 x 670 x 750 - 980 mm)

Applications

• Designed for industrial workstations, assembly lines, inspection stations and laboratory benches where adjustable seating and easy cleaning are required.

Ordering & options

• Select model code for required height and arm option; specify castors or glides where applicable
• Contact supplier for full dimensional drawings, custom options and volume orders
