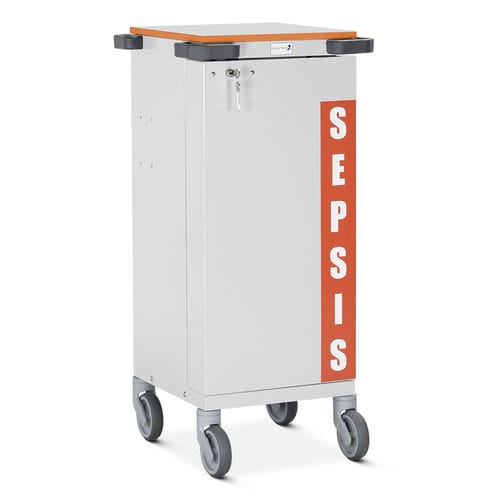

Hospital trolley SEPS/6 series

emergencyfor medicinetreatment

FEATURES

• Trolleys designed for use in the treatment of sepsis to support rapid delivery of care
• Supports delivery of 'The Sepsis Six' with clearly defined locations for equipment used in each stage
• Two locking options: High Security Bolt Lock (supplied with two keys) or Electronic Push Button (programmable four-digit code)
• Two adjustable door shelves and an A4 document holder
• Six labelled drawers: Oxygen / Blood Cultures / Intravenous Antibiotics / Intravenous Fluid / Haemoglobin & Lactates / Urine Measurement
• Optional Sharps Box Holder or Universal Sharps Box Bracket Mounting Plate (fits to the left-hand side of the trolley)
• Upper work surface for immediate preparation
• Push handles incorporate integral buffers to protect trolley and surrounding fabric
• 125 mm polymer castors for smooth manoeuvring
• When not in use, trolleys storing medicines should be secured to the wall (option: Security Clamp MT/1/6F)

MODELS
Code — Description — Overall Dimensions (W x D x H)
SEPS/6/HSB — Sepsis Trolley - Six Drawer, High Security Bolt Lock — 511 x 542 x 1072 mm
SEPS/6/EPB — Sepsis Trolley - Six Drawer, Electronic Push Button Lock — 511 x 542 x 1072 mm

OVERALL DIMENSIONS (W x D x H)

• 511 x 542 x 1072 mm
• Drawers (internal): 335 x 295 x 113 mm

STANDARD COLOURS

• Paint: Grey White
• Work Surface: Grey White

OPTIONS / ACCESSORIES

• Universal Sharps Box Bracket Mounting Plate
• Sharps Box Holder
• Drawer Inserts
• Label Holders & Labels (including Sepsis Tiger label)
• Security Clamp (wall clamp option)

TECHNICAL SPECIFICATIONS

• Purpose: Designed specifically to support delivery of 'The Sepsis Six'
• Locking: High security bolt lock (2 keys) or electronic push-button lock (programmable 4-digit code)
• Storage: Six labelled drawers; two adjustable door shelves; A4 document holder
• Castors: 125 mm polymer castors
• Materials/finish: Paint and work surface in Grey White (standard)
• Dimensions (W x D x H): 511 x 542 x 1072 mm
• Internal drawer size (W x D x H): 335 x 295 x 113 mm
• Optional mounting: Sharps box bracket or holder; Security clamp for wall fixing
