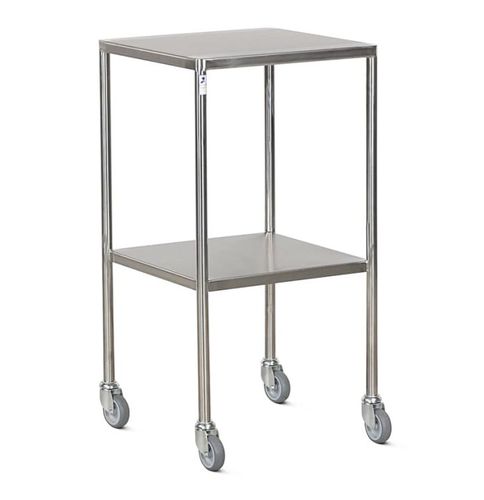

Medical trolley DTSF/450/2/SD

for operating roomsfor instrumentsstainless steel

FEATURES

• Complies with BS4068:1977 for hospital instrument, dressing and anaesthetists’ trolleys
• Seamless-welded 304 stainless steel construction for easy cleaning and clinical hygiene
• Fixed shelves with down-turned sides to contain instruments and consumables
• Shelf heights: 405 mm & 870 mm
• Maximum capacity per shelf: 40 kg
• 75 mm pressed-steel non-marking castors (1 x anti-static, 3 x non-anti-static)

OVERALL DIMENSIONS (w x d x h)

• Small - 470 x 470 x 870 mm
• Medium - 620 x 470 x 870 mm
• Large - 770 x 470 x 870 mm
• X-Large - 920 x 470 x 870 mm

SHELF SIZES (w x d)

• 450 x 450 mm
• 600 x 450 mm
• 750 x 450 mm
• 900 x 450 mm

PRODUCT CODES / VARIANTS
DTSF/450/2/SD | Two Shelf, Small, Sides Down | Express Delivery Available | 470 x 470 x 870 mm
DTSF/600/2/SD | Two Shelf, Medium, Sides Down | Express Delivery Available | 620 x 470 x 870 mm
DTSF/750/2/SD | Two Shelf, Large, Sides Down | Express Delivery Available | 770 x 470 x 870 mm
DTSF/900/2/SD | Two Shelf, X-Large, Sides Down | Express Delivery Available | 920 x 470 x 870 mm

RELATED RANGE / APPLICATIONS

• Part of the dressing and instrument trolley family
• Designed for theatre / instrument handling and general clinical use where fixed shelves with down-turned sides are required

TECHNICAL SPECIFICATIONS

• Standard: BS4068:1977
• Material: 304 grade stainless steel, seamless welds
• Shelves: fixed with down-turned sides
• Shelf heights: 405 mm and 870 mm
• Max shelf load: 40 kg per shelf
• Castors: 75 mm pressed steel non-marking; configuration: 1 anti-static, 3 non-anti-static
• Available shelf widths: 450, 600, 750, 900 mm (depth 450 mm)
• Overall height: 870 mm
