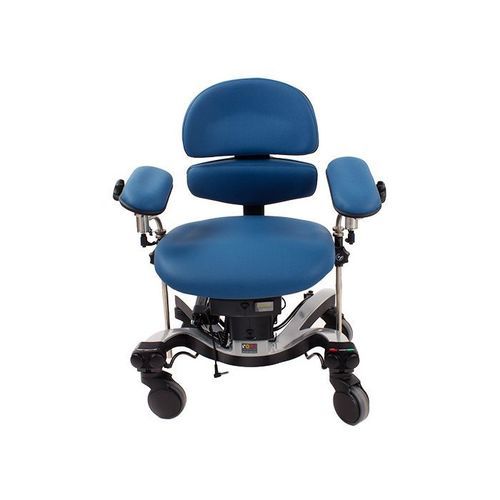

Washable surgeon's chair 5SS/SURC/SU/PL/VBLU

electricmobileheight-adjustable

FEATURES

• Standard: EN 60601-1:2006+A12:2014 for medical electrical equipment — basic safety & essential performance
• Ergonomic adjustments to support optimal working posture for surgical procedures
• Electric seat height adjustment via heel-operated switches for sterile control
• Adjustable seat, backrest and armrests for individualized positioning
• Seat: angle adjustable
• Backrest: height, angle and lumbar support adjustment
• Armrests: height, width and rotation adjustable; fold down when not in use
• Low-profile base designed to accommodate feet and microscope foot controls, allowing the surgeon to sit closer to the patient
• Electric parking brake activated/deactivated by heel-operated switches to permit repositioning while hands remain sterile
• Anti-static, low rolling-resistance castors for easy movement during cleaning and room transfers
• Vinyl upholstery with fire-retardant properties
• Minimised recesses throughout the chair to reduce contamination retention, including underside
• Backrest edge bands to prevent dirt ingress at the joints
• Equipped with 12V rechargeable batteries
• Battery charges via a plug located on the back of the armrest; charge indicator on the front of the chair
• Maximum user capacity: 160 kg

OPTIONS

• Active Extra-Large Seat: increased width and depth for large or tall users; improved weight distribution and posture support
• Active Medium Backrest: low backrest supporting lumbar and upper pelvic area while preserving arm and shoulder mobility
• Active Large Backrest: extended light support from lumbar area to upper back without restricting arm and shoulder movement
• Foldable Footrest: supports ergonomic seating and provides comfort when higher seating position is required; folds away when not in use

Variants / Codes
Code | Description
5SS/SURC/SU/PL/VBLU | Specialist Seating, Surgery Chair, Support Plus - Blue
5SS/SURC/SU/PL/VAGR | Specialist Seating, Surgery Chair, Support Plus - Grey
5SS/SURC/SU/PL/VBLA | Specialist Seating, Surgery Chair, Support Plus - Black

Technical specifications

• Standard: EN 60601-1:2006 + A12:2014
• Power: 12V rechargeable battery system; charges via plug on back of armrest
• Controls: electric seat height via heel-operated switches; electric brake via heel-operated switches
• Adjustments: seat angle; backrest height/angle/lumbar; armrest height/width/rotation (fold-down)
• Mobility: anti-static, low rolling resistance castors; base designed for microscope foot controls
• Upholstery: vinyl, fire retardant
• Design: recesses minimised; backrest edge bands to reduce dirt accumulation
• Battery indicator: located on front of chair
• Maximum user capacity: 160 kg
