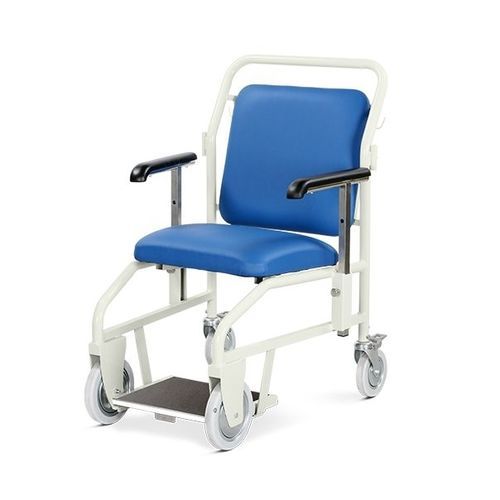

Indoor transfer chair G/200/RS series

stackablewith legrestwith armrests

DESCRIPTION

• Heavy-duty portering chair designed for safe patient transport and efficient storage in hospitals and clinics. Rear-steer layout improves manoeuvrability in corridors; nesting function reduces footprint when not in use.

FEATURES

• Heavy duty portering chair
• Nests to occupy reduced floor space & encourage tidy storage
• Seamless upholstery using flame retardant antimicrobial vinyl
• Moulded drop down arm rests allow side access for patients & porters
• Sliding footrest aids access as well as supporting feet during transit
• Design ensures chair will not tip should patient stand on the step
• X-ray / notes pocket on rear of seat
• Hook for patients' belongings
• Fittings to accept infusion poles
• 200mm fixed wheels / 150mm total stop braking castors (cushioned)
• Maximum load 190kg

STANDARDS

• CE Marked

OVERALL DIMENSIONS (W x D x H)

• Overall Dimensions - 660 x 840 x 1040 mm
• Seat Width - 540 mm
• Seat Depth - 420 mm
• Seat Height - 530 mm
• Backrest Height - 455 mm

STANDARD COLOURS

• Paint - Grey White
• Upholstery - Bristol Blue

PRODUCT VARIANTS (table)
Code | Description | Express Delivery | Overall Dimensions (W x D x H)
G/200/RS/VBB | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Bristol Blue | Yes | 660 x 840 x 1040 mm
G/200/RS/VAQ | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Aquamarine | No | 660 x 840 x 1040 mm
G/200/RS/VFR | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Flame Red | No | 660 x 840 x 1040 mm
G/200/RS/VGH | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Graphite | No | 660 x 840 x 1040 mm
G/200/RS/VSD | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Sand Dune | No | 660 x 840 x 1040 mm
G/200/RS/VOB | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Onyx Black | No | 660 x 840 x 1040 mm
G/200/RS/VLI | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Lime | No | 660 x 840 x 1040 mm
G/200/RS/VCH | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Chocolate | No | 660 x 840 x 1040 mm
G/200/RS/VCB | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Coastal Blue | No | 660 x 840 x 1040 mm
G/200/RS/VPE | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Peach | No | 660 x 840 x 1040 mm
G/200/RS/CCLK/VBB | Portering Chair - Rear Steer, Nesting, Sliding Footrest, Fitted with Coin / Card Lock | No | 660 x 840 x 1040 mm

TECHNICAL SPECIFICATIONS

• Maximum user/load capacity: 190 kg
• Wheels / castors: 200 mm fixed wheels; 150 mm total stop braking castors (cushioned)
• Upholstery: seamless, flame retardant antimicrobial vinyl
• Armrests: moulded drop-down for side access
• Foot support: sliding footrest to aid access and support feet during transit
• Storage: nests for reduced floor space; X-ray / notes pocket on rear of seat; hook for belongings
• Accessories: fittings provided to accept infusion poles; optional coin/card lock variant available
• Standards: CE marked
• Overall dimensions (W x D x H): 660 x 840 x 1040 mm
• Seat width/depth/height: 540 mm / 420 mm / 530 mm
• Backrest height: 455 mm
