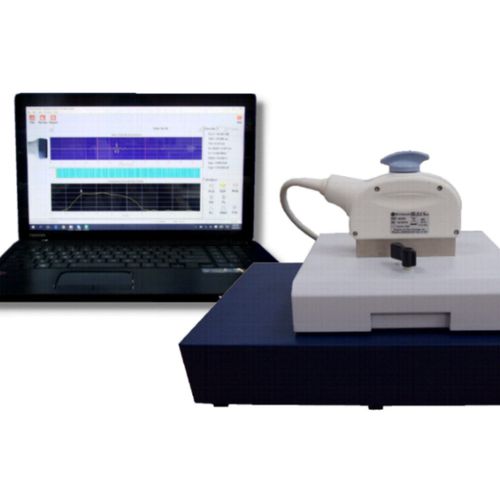

Ultrasound transducer analyzer ProCheck SC5

ultrasound transducer analyzer
ultrasound transducer analyzer
Add to favorites
Compare this product


for ultrasound transducers


Introduction to ProCheck SC5 UTAS The Broadsound ProCheck SC5JJItrasound Transducer Analysis System (UTAS) is a specialty measurement instrument for the R&D, design, manufacturing, récurrent test, and repair of acoustic transducers. Its features are as follows: A)Analysis Apps (applications) that involve the following five measurements: 1.Capacitance measurement 2.Axial characteristic loop sensitivity SLC measurement 3.Intrinsic characteristics measurement 4.Transmission crosstalk measurement with optimum drive waveform signal B(t) 5.Echo measurement with optimum drive waveform signal £(t) B)B(t) Generator / Receiver Apps (applications) C)Puiser / Receiver Apps (applications) D)Product Configuration E)"Innovator" software F)Compliance A) Analysis Apps (applications) The Analysis Apps of ProCheck SC5 UTAS involve five measurements; please refer to the attached file "2018-09-29_Broadsound ProCheck SC5 UTAS_Analysis Apps.pdf" for details, and the summary of which is listed as following: 1.Capacitance measurement Total capacitance CT of each channel/element including capacitance of transducer element, capacitance of coaxial cable, and capacitance of HVSW (high voltage switch) ICs if existed is measured at low frequency < 30 kHz. 2.Axial characteristic loop sensitivity SLC measurement 2.1 Curve of characteristic loop sensitivity $lc along axial distance L is measured; the curve Indicates élévation focus and divergence in far-field zone of acoustic beam which are determined by acoustic membrane / acoustic lens.
