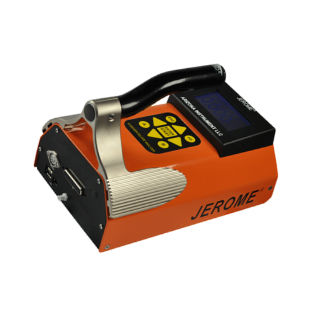

Gold Film Hydrogen Sulfide Analyzer
The newest H2S analyzer from Arizona Instrument LLC is the Jerome® J605 Hydrogen Sulfide Analyzer. The Jerome® J605 can read as low as 3ppb with an incredible resolution of 20ppt.
The J605 is housed in a light and ergonomically designed case, setting a new precedent for low-level, portable monitors. The industry-proven, gold film sensor has been upgraded and improved from previous models, resulting in longer life expectancies.
Detect hydrogen sulfide in air at levels as low as 3 parts per billion (3ppb).
The Jerome’s gold film sensing technology has been validated in the laboratory and in the field for more than 35 years.
Its sturdy metal housing makes the J605 tough enough for nearly any environment.
With 18 hours of battery life per charge, the J605 is always ready when you need it.
Features onboard data logging for up to 20,000 measurements, USB data transfer, and SCADA interface capabilities through 4-20ma output.
Detection Range: - 3 ppb (0.003 ppm) – 10 ppm
Resolution: - 20 ppt (0.02 ppb) *range dependent
Accuracy: - ±1 ppb at 5 ppb
±3 ppb at 50 ppb
±0.03 ppm at 0.5 ppm
±0.3 ppm at 5.0 ppm
Response Time: - Survey Mode: 12-27 seconds
Manual Mode: 12-27 seconds
Auto Mode: 12-53 seconds
Flow Rate: - 150 mL/min
Autosample Intervals: 1, 2, 5, 10, 15, 30, 45, 60, 90 or 120 minutes
Integrated Data Storage: - 20,000 test results; retains date, time and up to 80 locations
Display: - 3.5” (9 cm) backlit LCD
Battery: - Rechargeable NiMH
18 hour life, charges in 3 hours
Power Requirements: - 12 VDC for the instrument;
100-240 VAC, 47-63 Hz, 1.3A for the AC power supply
