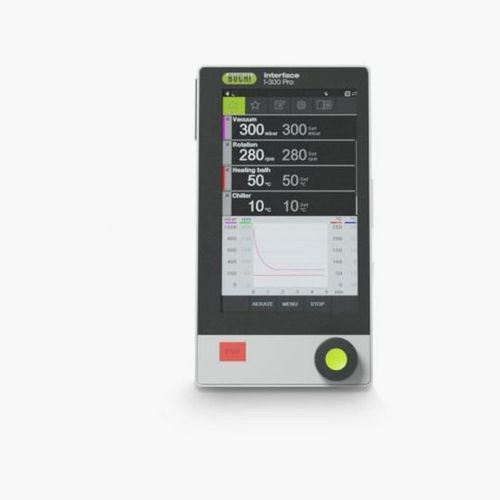

Compliance control unit I-300 Pro

pumpprocessmonitoring

Product description
The Interface I-300 and I-300 Pro are central control units for Rotavapor® R-300 rotary evaporation systems. They provide touchscreen operation, central regulation of vacuum and process parameters, continuous process recording and remote monitoring via the BUCHI Monitor app. The interfaces integrate with compatible vacuum pumps and recirculating chillers to simplify setup and enable unattended operation.

Key benefits

• Centralized control of all process parameters for rotary evaporation workflows.
• Plug & play integration with Rotavapor® systems.
• Remote monitoring and live charting of process parameters via the BUCHI Monitor app.
• Continuous process recording with SD card export for traceability.
• Advanced automation (AutoDest) and foam-sensor support for unattended and foaming samples.

Features

• Automatic distillation with AutoDest, including sequences for foaming samples when combined with a foam sensor.
• Graphical charting of all process parameters to support supervision and troubleshooting.
• Intuitive user interface: water-resistant touchscreen, navigation knob, instant stop and programmable function keys.
• Continuous parameter logging and export for documentation and compliance.
• Flexible installation and remote control from convenient locations.
• Live monitoring with charting and push notifications via mobile/desktop app.
• Drying mode with alternating rotation to improve drying of solids.
• Dynamic distillation with solvent library and vacuum adjustment during startup and distillation.
• Favorites for quick access to preferred solvents, leak test and functions.
• Integrated leak test with on-screen result.

Compatibility & Installation

• Compatible with Rotavapor® R-300 systems.
• Compatible with Vacuum Pump V-300 / V-600 and F-3XX recirculating chillers.
• Multiple mounting options: Rotavapor® handle, vacuum pump, fume hood, lab bench or wall; can also operate stand-alone to control house vacuum.

Software & Connectivity

• BUCHI Monitor app (iOS, Android, Windows) for live view, charting and push notifications.
• Firmware updates and remote monitoring support; data export to SD card for process analysis.

Characteristics / technical specifications

• Models: Interface I-300 and Interface I-300 Pro.
• Display: I-300 Pro up to 7" touchscreen; I-300 LCD 4.3".
• Method programming and solvent library: available on I-300 Pro for automated sequences.
• Dynamic distillation: vacuum adjusted dynamically during startup and distillation.
• Eco mode: available on I-300 Pro.
• Foam sensor compatibility: optional for foam detection.
• AutoDest: automatic distillation for unattended runs.
• Data recording: continuous logging; export to SD card (full process recording on I-300 Pro).
• Leak test: integrated tightness test.
• Installation: device, fume hood or wall mounting; can control house or connected vacuum pumps.
