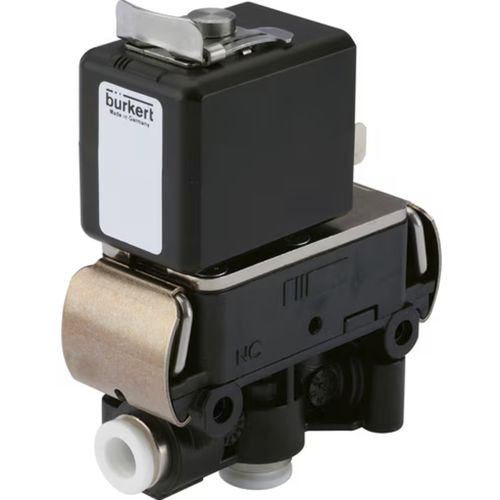

Fluid dispensing solenoid valve 7017

diaphragm3/2

Direct-acting, media-separated rocker valve for the dosing, filling, mixing and distribution of neutral and aggressive liquids and gases. The medium is exclusively in contact with the body and seal material. The tried-and-tested rocker technology is characterised by full back pressure tightness, good flushability and a low internal volume. The unique service concept allows the valve to be opened quickly and inspected, and the separation diaphragm to be changed if needed, without the need for tools. The solenoid can be loosened and aligned in any position. The Type 7017 is available in a wide variety of technical variants and provides perfect adaption in fluidics application with the aid of different body options. The valve programme includes approval as per NSF169 and complies with Commission Regulation (EC) 1935/2004 and FDA. The valves comply with degree of protection IP20. 3/2-way rocker solenoid valve with universal circuit function up to DN 4 Separating diaphragms for chemical resistance and full back pressure tightness thanks to rocker principle Fast diaphragm change without the need for tools Push-in and flange variant, stackable Approval/conformities for use in the food sector
