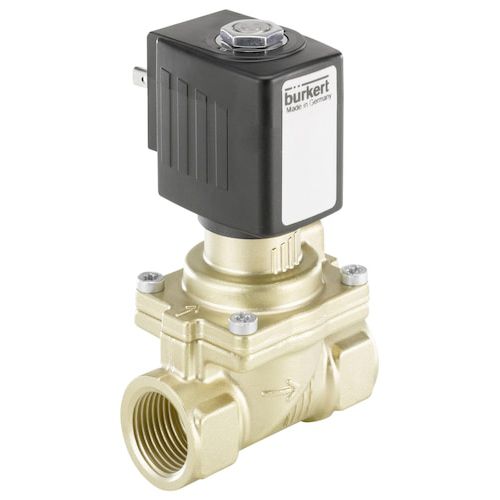

Valve for the medical industry 6281
solenoid

valve for the medical industry
valve for the medical industry
valve for the medical industry
valve for the medical industry
valve for the medical industry
valve for the medical industry
valve for the medical industry
Add to favorites
Compare this product


Characteristics

Applications
for the medical industry
Technology
solenoid

Description

The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum differential pressure is always required for the function of the valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Dezincification-resistant brass is available for other markets. The housing offering is rounded out by a stainless steel version. For reduced energy requirement, all coils can be delivered with electronic power reduction. The valve can be equipped with manual override for easy maintenance and commissioning. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65 – in combination with a stainless steel housing NEMA 4X. Servo-assisted diaphragm with diameter of up to DN50 Vibration-proof, central screwed coil system Damped design for quiet closing Service-friendly manual override Explosion-proof versions
