flow sensor / for the medical industry
8098

Add to MyMedicalExpo favorites
Compare this product

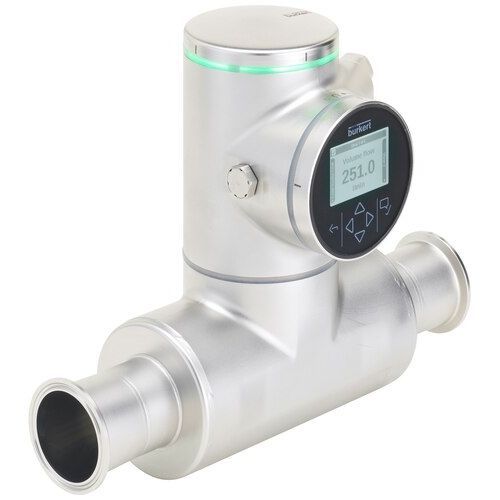

flow sensor / for the medical industry flow sensor / for the medical industry - 8098
{{requestButtons}}

Characteristics

  • Evaluation type:

    flow

  • Applications:

    for the medical industry

Description

FLOWave SAW-Flowmeter

The 8098 flowmeter is a product of the FLOWave range. It uses the SAW (Surface Acoustic Waves) technology and is mainly designed for applications with highest hygienic demands. This is achieved by using: - the suitable stainless steel materials - a tube free of any inner parts - the ideal outer design. FLOWave offers a range of features, including flexibility advantages, ease of cleaning, compact size, light weight, easy installation and handling, and is compliant with numerous standards. Optimal measurement results can be achieved with homogenous, air and solid free liquids. For higher viscous liquids an integrated viscosity compensation can be used. Gas and steam cannot be measured however these media do have any negative effect on the device or its operation. Other liquids flowing through again afterwards are measured correctly as before. Special functions derived from further process values (density factor, acoustic transmission factor) offer additional information about the particular liquid in use. (Details see data sheet).

No parts in the measurement tube
Conforms to hygienic requirements, CIP/SIP capable
Ideal for liquids with low or no conductivity
Digital communication
Compact, light weight and energy-efficient
