Mass flow meter 8006
thermalgas

mass flow meter
mass flow meter
mass flow meter
mass flow meter
mass flow meter
Add to favorites
Compare this product


Characteristics

Other characteristics
mass, thermal
Fluid type
gas
Pressure

Min.: 10 bar (145 psi)

Max.: 25 bar (362.6 psi)

Weight

1 kg, 3 kg (2 lb)

Description

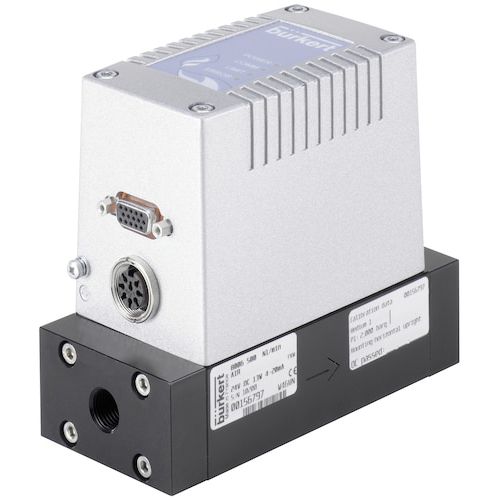

The mass flow meter (MFM) type 8006 is suited for measuring the mass flow of high gas flows. The thermal inline sensor is located directly in the gas stream and therefore reaches very fast response times. Type 8006 can optionally be calibrated for two different gases; the user can switch between these two gases. As electrical interfaces both, analog standard signals and fieldbuses are available. The MFM type 8006 is especially designed for use in harsh environments due to a low sensitivity to contamination and the high protection class. Nominal flow ranges from 20 l/min up to 2500 l/min High accuracy Fast response time Protection class IP65 Optional: Fieldbus interface
