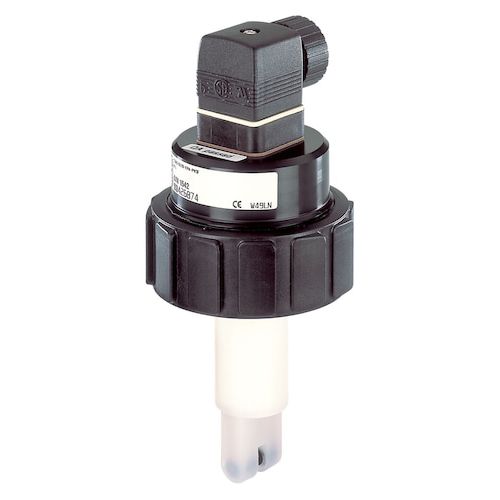

The conductivity sensor is a compact probe with integrated conductivity electrodes. Four conductivity probes having different cell constants are available and offer a large measurement range. The Pt1000 for automatic temperature compensation is integrated in the sensor housing. The sensor transmits directly a raw signal and is fitted with a standard EN 175301-803 plug connector. The sensor has to be connected to the Bürkert transmitter/ controller Type 8619 multiCELL via a 4x1.5 mm2 shielded cable (maximal cable length of 10 m). The conductivity sensor can be installed into a pipe by using INSERTION fitting Type S020 which is available in different materials (details see data sheet Type S020). In its longer version it can also be installed in tanks or containers by using an industrial immersion fitting.
Compact version for DN15 to DN200
Large capabilities of conductivity measurement through different cells
Large range of process connections with various fittings
