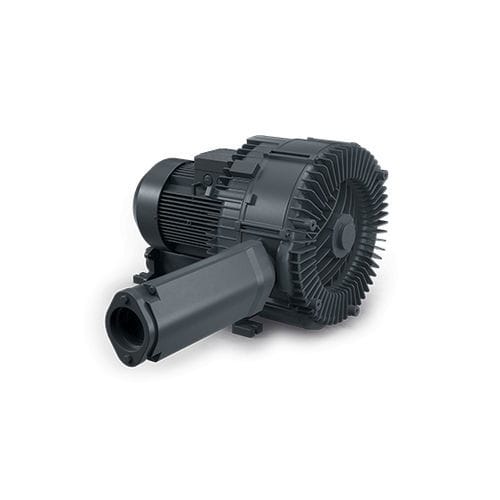

Medical vacuum pump SAMOS SB seriesimpellerlubricated
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- impeller
- Options
- lubricated
- Flow
320 m³/h, 520 m³/h, 1,120 m³/h
(11,300.69 ft³/h, 18,363.63 ft³/h, 39,552.43 ft³/h)- Power
Max.: 20 kW
(27.19 hp)Min.: 3 kW
(4.08 hp)- Pressure
Max.: 445 mbar
(6.4542 psi)Min.: 250 mbar
(3.6259 psi)- Weight
Max.: 294 kg
(648.2 lb)Min.: 51 kg
(112.4 lb)- Length
528 mm, 601 mm, 860 mm
(20.8 in, 23.7 in, 33.9 in)- Width
639 mm, 656 mm, 1,100 mm
(25.2 in, 25.8 in, 43.3 in)- Height
420 mm, 516 mm, 580 mm
(16.5 in, 20.3 in, 22.8 in)
Description
Robust construction, effective air cooling, long lifetime, nearly maintenance-free, dry and contact-free operating principle, high differential pressures thanks to two compression stages
Flexible
Vacuum or overpressure operation, horizontal and vertical installation, various design options and ATEX-certified versions available
Quiet
Very low noise level, fully enclosed unit, internal silencers
Accessories
Vacuum relief valves
Pressure relief valves
Additional silencers
Thermal protection (bimetal switch or PTC-thermistor)
