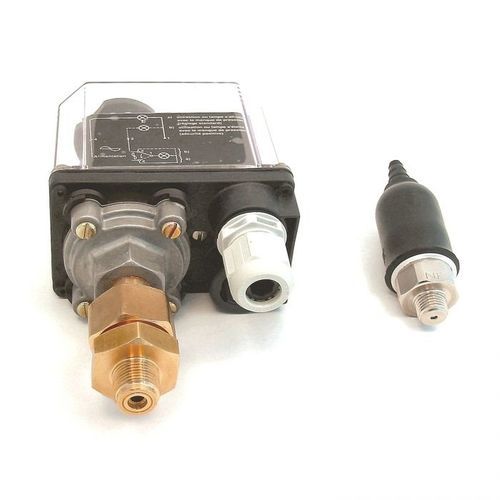

Piston pressure switch LP

diaphragmfor medical gasflange

Pressure switches show the crossing of a pressure threshold at a specific location of a pipeline system. They activate light or sound alarms. The HP pressure switches are designed to be fitted onto the HP side of medical gas supply lines (O2, N2O, CO2, N2 and their mixtures). They indicate the low level of the HP gas source. The LP pressure switches are designed to be fitted onto the intermediate pressure portion of medical gas supply lines. They indicate the drop of the operating pressure in the pipe line system. MATERIAL • HP pressure switches : - Body : brass - Piston : stainless steel - Seal : EPDM • MCS11 LP pressure switch : - Diaphragm : neopren rubber - Flange : smelted aluminium - Connexion : brass MAINTENANCE There is no possible maintenance of these devices. The checking and replacement procedures are mentionned in the data sheet
