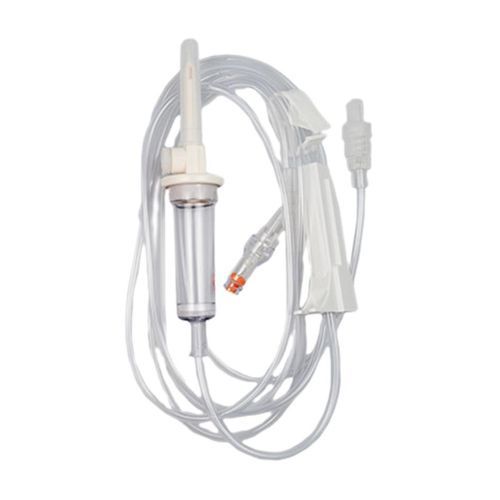

Infusion set with Y port PF161

with stopcockwith hemostasis valvewith drip chamber

Overview
Infusion sets for intravenous therapy, single‑use and sterile, integrating the Neutraclear™ bidirectional valve to support safe line management. Intended for use by healthcare professionals in hospital and clinical environments.

Available references / Configurations
Reference | Description | Inner box quantity | Outer box quantity
PF161 | 180 cm infusion set, Ø 3 mm + drop chamber + Y connector + Neutraclear™ | 50 | 200
PF162 | 200 cm infusion set, Ø 3 mm + drop chamber + 2 Y connectors + 2 Neutraclear™ | 50 | 200
PF163 | 185 cm infusion set, Ø 3 mm + drop chamber + non‑return valve on tubing + 2 Y connectors + 2 Neutraclear™ | 50 | 200
PF164 | 180 cm infusion set, Ø 3 mm + microdrop chamber + Y connector + Neutraclear™ | 50 | 200

Infusion sets with Dosicair flow regulator
Reference | Description | Inner box quantity | Outer box quantity
DF306 | 203.5 cm infusion set, Ø 2.5 mm + drop chamber + Dosicair flow regulator + injection Y with Neutraclear™ | 50 | 200

Regulatory information
MD class: Is; CE 2797. Read the instructions for use before clinical application.

Technical specifications

• Neutraclear™ bidirectional valve integrated on listed references.
• References: PF161, PF162, PF163, PF164, DF306.
• Lengths: PF161 180 cm; PF162 200 cm; PF163 185 cm; PF164 180 cm; DF306 203.5 cm.
• Tubing diameter: Ø 3 mm (PF16x); Ø 2.5 mm (DF306).
• Components: drop chamber or microdrop chamber, Y connector(s), injection Y (DF306), non‑return valve on tubing (PF163), Neutraclear™ units (1 or 2 depending on reference).
• Dosicair flow regulator included in DF306.
• Packing: inner box 50 units; outer box 200 units.
• Classification: Medical Device Class Is; CE number: 2797.
