Suction tube TA series

Product overview

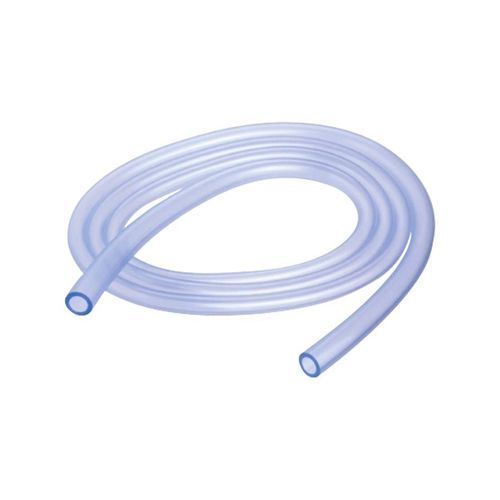

Extra flexible suction tubing SOFTUB. Tubing supplied non-sterile in clean medical packaging in an easy-dispensing storage box. Multiple sterile section variants are also available.

Non-sterile SOFTUB – references
reference | internal diameter (mm) | length (cm) | inner box qty.
TA35 | 4.5 | 3000 | 6
TA37 | 7 | 3000 | 4
TA57 | 7 | 5000 | 4
TA38 | 8 | 3000 | 4

Regulatory
DM class: I, CE. Read the instructions in the technical file. Sterile variants: MD class Is, CE2797 — see technical file instructions.

Section of sterile SOFTUB tubing — One right tip on each end
reference | internal diameter (mm) | length (cm) | inner box qty. | outer box qty.
TA5181 | 4.5 | 180 | 40 | 160
TA5271 | 4.5 | 270 | 40 | 160
TA5361 | 4.5 | 360 | 20 | 80
TA6181 | 6 | 180 | 30 | 120
TA6271 | 6 | 270 | 20 | 80
TA6361 | 6 | 360 | 20 | 40
TA7181 | 7 | 180 | 20 | 80
TA7271 | 7 | 270 | 20 | 40
TA7301 | 7 | 300 | 20 | 40
TA7361 | 7 | 360 | 15 | 30
TA8181 | 8 | 180 | 20 | 80
TA8271 | 8 | 270 | 20 | 40
TA8361 | 8 | 360 | 15 | 30

Other sterile SOFTUB configurations (listed on the product page)
Several sterile variants are provided on the product page with different end fittings and packaging configurations, including:

• Sections with one funnel at each end (sterile) — multiple references (suffix S) with internal diameters 4.5 mm, 6 mm, 7 mm, 8 mm and lengths 180, 270, 360, 300 cm and defined inner/outer box quantities.
• Sections with one funnel end and one right tip end — multiple references (suffix i) for various diameters and lengths and specified inner/outer box quantities.
• Sections with one luer-lock end and one funnel end — multiple references (suffix L) with defined diameters, lengths and packaging quantities.

Notes
- Product marketed under the name SOFTUB by Cair LGL.
- Packaging types include clean medical packaging in an easy-dispensing storage box for non-sterile tubing and multiple sterile-pack variants listed by reference on the product page.

Technical characteristics / specifications

• Brand: Cair LGL
• Commercial name: SOFTUB
• Product type: extra flexible suction tubing, non-sterile roll in an easy-dispensing storage box; multiple sterile section variants with different end fittings (right tip, funnel, luer-lock)
• Non-sterile references and sizes: TA35 (4.5 mm × 3000 cm, inner box qty 6), TA37 (7 mm × 3000 cm, inner box qty 4), TA57 (7 mm × 5000 cm, inner box qty 4), TA38 (8 mm × 3000 cm, inner box qty 4)
• Sterile sections (examples): TA5181, TA5271, TA5361, TA6181, TA6271, TA6361, TA7181, TA7271, TA7301, TA7361, TA8181, TA8271, TA8361 with lengths 180–360 cm and specified inner/outer box quantities
• End fittings: right tip, funnel, one funnel + one right tip, luer-lock + funnel (specific references for each configuration)
• Regulatory: DM class I (non-sterile) and MD class Is (sterile) with CE marking; refer to technical file for instructions
• Non-sterile and sterile options available — see product reference lists and packaging quantities on the product page
