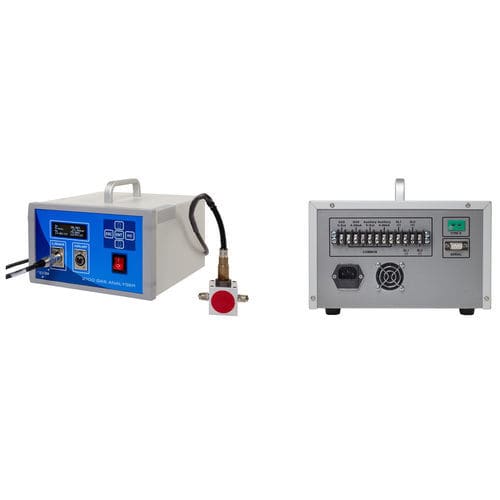

Control analyser Rapidox 2100

calibrationtemperatureoxygen

Ideal for low ppm oxygen analysis in industrial applications and high-temperature applications Easy user calibration procedure (with appropriate calibration gas) for after-sale longevity Low maintenance and long life sensor expectancy are marks of a Cambridge Sensotec gas analyser Two fully programmable alarm settings: high and low, open or closed relays Digital outputs and fully programmable analogue outputs giving more flexibility to the user Software package includes full control of the analyser, live graphing & Excel compatible data-logging Operates on any worldwide mains voltage (90-260VAC) meaning ultimate usability Various product configurations available, including OEM and bezel mounted (specify on order) Type K thermocouple input allows for independent temperature measurements For more peace of mind, a password protection feature comes as standard Options such as remote electrochemical oxygen sensors & electro beam welded sensors are available Complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1 The Rapidox 2100 is a high-performance oxygen (O2) analyser fitted with a rugged long-life zirconia sensor on a remote cable, together with a type K thermocouple sensor; allowing direct in-process measurement of oxygen and temperature in the sample gas. The sensors provide fast and accurate analysis over the low ppm oxygen range in harsh environments up to 650°C. Zirconia oxygen sensors are particularly suitable for monitoring inert atmospheres in aggressive industrial applications within manufacturing processes; this includes high-temperature locations and vacuum atmospheres.
