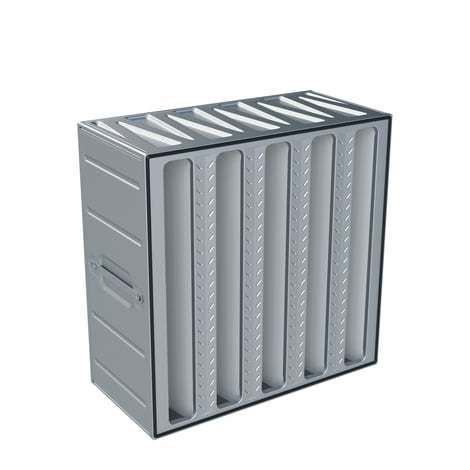

Pleated filter Opakair HT

micro glass fiberairfor the food industry

Overview
A compact V-bank fine filter for supply or exhaust air systems that require very high airflow with low pressure drop. Designed for continuous operating temperatures above 70°C (maximum 120°C) such as dryers and high-temperature process lines in food & beverage and industrial applications. The modern galvanised steel frame with a V-shaped pleat pack delivers high removal capacity and structural stability while minimising pressure drop and weight.

Key features

• Lightest V-bank steel fine filter in its category
• Suitable for very high air velocities (up to 3.4 m/s)
• Strong, airtight galvanised steel frame
• Maximum continuous operating temperature: 120°C
• Ultra-low outgassing suitable for sensitive processes
• Available in box filter classes: M6 (ePM10 70%), F7 (ePM1 55%), F8 (ePM1 70%), F9 (ePM1 80%)

Performance (available sizes & performance)
Item Type | ISO 16890 | Filter Class EN779 | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
OPE-1070-610x305x292-M0-1HW | ePM10 70% | M6 | 610 | 305 | 292 | 2050 | 100
OPE-1070-610x610x292-M0-2HH | ePM10 70% | M6 | 610 | 610 | 292 | 4500 | 100
OPE-0155-610x305x292-M0-1HW | ePM1 55% | F7 | 610 | 305 | 292 | 2050 | 110
OPE-0155-610x610x292-M0-2HH | ePM1 55% | F7 | 610 | 610 | 292 | 4500 | 110
OPE-0170-610x305x292-M0-1HW | ePM1 70% | F8 | 610 | 305 | 292 | 2050 | 120
OPE-0170-610x610x292-M0-2HH | ePM1 70% | F8 | 610 | 610 | 292 | 4500 | 120
OPE-0180-610x305x292-M0-1HW | ePM1 80% | F9 | 610 | 305 | 292 | 2050 | 130
OPE-0180-610x610x292-M0-2HH | ePM1 80% | F9 | 610 | 610 | 292 | 4500 | 130

Technical characteristics / specifications

• Application: High-temperature fine filter for clean industrial processes with high volumetric airflow
• Filter frame: Galvanised steel (option: stainless steel for specific variants)
• Media: Glass fiber
• Maximum continuous operating temperature: 120 °C
• Relative humidity: up to 100%
• Recommended final pressure drop: 2 × initial pressure drop
• Separator: Polyamide hot‑melt for uniform pleat spacing
• Gasket: EPDM (flange upstream)
• Sealant: Polyurethane
• Maximum airflow: 1.1 × nominal flow
• Maximum final pressure drop: 600 Pa
