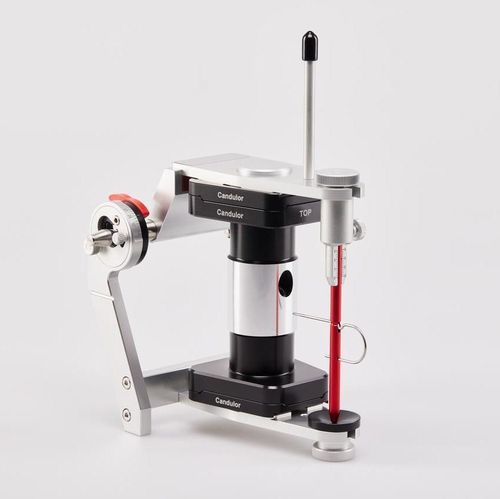

Non-arcon dental articulator CA 3.0 LARGE

with magnetic mounting system

Three-dimensional movement for functional prosthetics Together with the Plate Set for Splitex® and the Calibration Key compatible with Splitex®", the CA 3.0 LARGE can be adjusted to the overall height of 126 mm and synchronized with the Artex® articulators of the Carbon series from Amann Girrbach. Technical data Height: 160 mm Width: 145 mm Weight: 735 g Inner construction height: 126 mm (with Split-Cast) Depth: 160 mm Bonwill triangle: 110 mm Balkwill angle: 25° Retrusion track: 1.5 mm Immediate side-shift stop: 0 – 2.5 mm fix Angle of jaw track adjustable between 0° – 60° Incisal plate: 15° Material: anodized aluminum Plate set for use with Splitex® Can be integrated with CAD/CAM scanner Adjustment can be made with the Candulor centering key; but also with an existing Splitex®-based centering key Compatible centering key for Splitex® Split centering key For the synchronization of several articulators with each other «Splitex® and Artex® are registered trademarks of Amann Girrbach GmbH, 75177 Pforzheim, DE»
