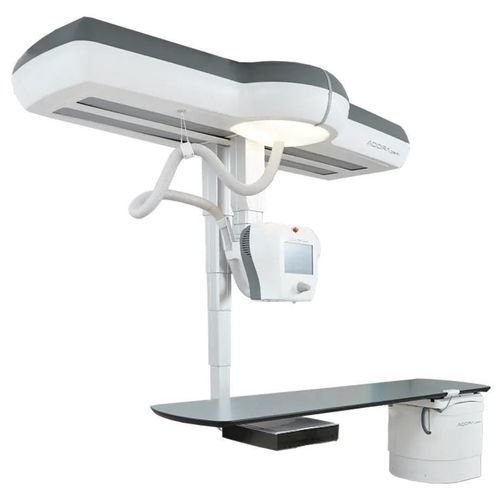

Digital X-ray system Adora DRFi

for diagnostic fluoroscopywith ceiling-mounted swiveling tube standceiling-mounted

Overview
Adora DRFi is an automated hybrid X-ray system combining static digital radiography (DR), dynamic radiography and low-dose fluoroscopy in a single room. It is designed to streamline radiographic and fluoroscopic workflows, improve equipment utilization and reduce patient repositioning.

Technology Highlights

• Patented single-ceiling suspension: tube and detector housed in one unit rotating +/-270° around the center axis
• Single-sided suspended patient table with carbon-fiber floating tabletop and 551 lbs / 250 kg load capacity
• Storage of up to 999 auto-positions with saved image acquisition and processing parameters to match user preferences

Patient-Centered Productivity

• Telescopic arms allow independent movement, angulation and tracking of the X-ray tube and detector to move the system, not the patient
• Floating carbon-fiber table supports easy access, up to 340° rotation around the base and a 551 lb / 250 kg patient capacity
• Unique suspension enables horizontal projections from either side of the table for right and left axial hip imaging without patient repositioning

Intuitive and Optimized Workflow

• Tube head controls: 12-inch floating touch screen on the tube for joystick control, generator parameters and image preview
• inControl Console (in-room management): Optional console with four ergonomic joysticks for patient-side procedures
  • Moving the positioner
  • Selecting tracking modes and adjusting the collimator
  • Assigning custom functions to the 4th joystick
• Control room operation: Full remote control from the control room with ergonomic joystick featuring capacitive sensors to prevent unintended movements

CXDI-B1 Dynamic Detector

• CXDI-B1 offers both true dynamic and static imaging in a single detector for flexible use across fluoroscopy and DR exams
• 42 cm x 43 cm lightweight detector suitable for a wide range of procedures
• Wireless operation enables DR imaging anywhere in the room and can reduce the need for additional detectors

CXDI-RF Controller Software

• Intuitive GUI designed for efficient operation and streamlined workflow
• Prepack protocol execution for repeatable exam setups
• Advanced image post-processing and parameter controls

Technical specifications

• Product name: Adora DRFi
• Manufacturer / Brand: Canon Medical Systems USA
• System type: Automated hybrid X‑ray system combining static DR, dynamic radiography and low‑dose fluoroscopy
• Tube and detector suspension: Single ceiling unit rotating +/-270° around center axis
• Patient table: Single-sided suspended carbon-fiber tabletop, floating tabletop
• Patient weight capacity: 551 lbs / 250 kg
• Table rotation: Up to 340° around the base
• Auto-positions: Up to 999 saved positions with image acquisition and processing parameters
• Tube head control: 12-inch floating touch screen with joystick control and image preview
• In-room management: Optional inControl console with four ergonomic joysticks and customizable functions
• Control room operation: Full remote control capability; capacitive-sensor joysticks
• Detector: CXDI-B1 dynamic detector, 42 cm x 43 cm, wireless CXDI-RF capability
• Software: CXDI-RF controller with GUI, prepack protocols and advanced post-processing
