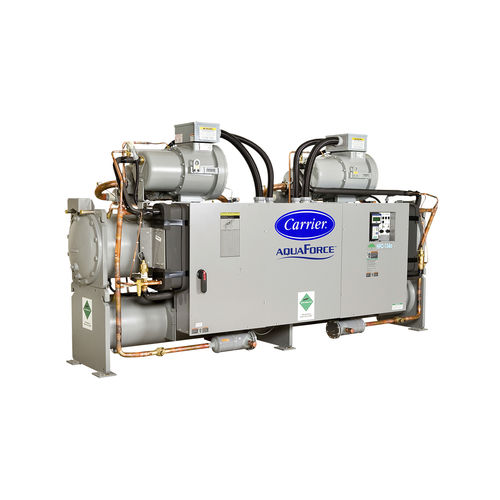

Water-cooled water chiller AquaForce®

The 30HX units are high-efficiency, indoor water-cooled or condenserless chillers. The units have a quiet, low-vibration design featuring screw compressors. The 30HX chillers are compact enough to fit through a standard door, making them great replacement units. Performance Features Chlorine-free HFC-134a refrigerant Low energy consumption during part load and full load operation 208/230 v, 230 v, 460 v, 575 v operational voltages available Wye-delta start is standard on 208/230 v and 230 v 50/60 Hz units (factory-installed option for all other units) Leaving-fluid temperature directly controlled to within 0.5°F (0.3°C) Entering-fluid temperature continuously monitored to detect flow or load changes Compatible with Carrier Comfort Network® (CCN) communication link Heat recovery capability up to 135°F (57.22°C) Reliability Features Low voltage control circuits Short cycle protection Dual chiller control Temperature reset from return fluid Chilled water flow switch Electronic refrigerant gauges Maintenance Features Hermetic twin screw compressors Mechanically cleanable condenser and evaporator (30HXC) Alarm contacts Filter drier Moisture indicating sight glass Accessible service information including suction and discharge pressure and temperature using Navigator™ display module Discharge and liquid line shutoff valves ON/OFF control switch Installation Features Modular construction Fits through standard doorway Single point electrical connection Easy connections for remote condensers (30HXA) Heat mode controls as standard Factory-Installed Options Wye-delta start Brine Minus-one-pass evaporator head Plus-one-pass evaporator head
