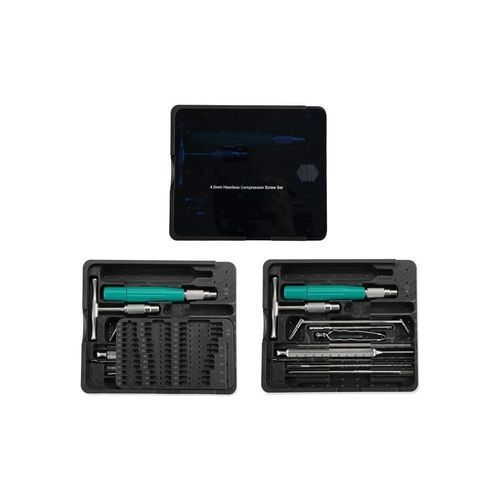

Traumatology instrument kit

orthopedic surgerycustomizable

Product name
Headless Cannulated Screw Set

Series
Trauma Instrument Set Series (Plate and Screw Set)

Set list
Instrument No | Product Description
2.5 Headless Compression Screw Instrument Set
8220.0018 - Depth Gauge DB2.5 HL2.5 φ0.8x115
8610.8108 - Guide Wire DB2.5 HL2.5 φ0.8x100
8028.4118 - Drill Guide DB2.5 HL2.5 φ1.9 φ0.8
8511.9128 - Cannulated Drill Bit DB2.5 HL2.5 φ1.9 φ0.8
8579.0688 - Cannulated Torx Screwdriver DB2.5 HL2.5 φ0.8
8362.0688 - Torx Screwdriver DB2.5 HL2.5
8610.8818 - Cleaning Pin DB2.5 HL2.5 φ0.8x120
8110.2258 - Quick Coupling Handle
8225.0018 - Screw Holding Forceps
3.0 Headless Compression Screw Instrument Set
8611.1128 - Guide Wire DB3.0 3.5 HL3.0 3.5 φ1.1x120
8028.4138 - Drill Guide HL3.0 3.5 DB3.0 3.5 φ1.1 φ2.4
8512.1128 - Cannulated Drill Bit DB3.0 HL3.0 φ2.1 φ1.1
8579.0748 - Cannulated torx Screwdriver DB3.0 HL3.0 φ1.1
8362.0748 - Torx Screwdriver DB3.0 HL3.0
8611.1818 - Cleaning Pin HL3.0 3.5 DB3.0 3.5 φ1.1x120
8110.2258 - Quick Coupling Handle
8225.0018 - Screw Holding Forceps
8221.0018 - Depth gauge
4.0 Headless Compression Screw Instrument Set
8222.0028 - Depth Gauge DB4.0 HL4.0 5.0 φ1.1x165
8611.1138 - Guide wire DB4.0 HL4.0 5.0 φ1.1x150
8028.4238 - Drill Guide HL4.0 5.0 φ1.1 φ4.0
8512.8118 - Cannulated Drill Bit HL4.0 φ2.8 φ1.1
8579.1138 - Cannulated Torx Screwdriver DB4.0 HL4.0 5.0 φ1.1
8362.1108 - Torx Screwdriver DB3.5 4.0 HL3.5 4.0 5.0
8611.1828 - Cleaning Pin DB4.0 HL4.0 5.0 φ1.1x150
8110.2258 - Quick Coupling handle
8110.2008 - Quick coupling handle
8225.0018 - Screw Holding Forceps
6.5 Headless Compression Screw Instrument Set
8223.0028 - Depth Gauge
8611.5138 - Guide Wire HL6.5 φ1.5x180
8028.4168 - Drill Guide HL6.5 φ1.5 φ4.5
8510.0158 - Cannulated Drill Bit HL6.5 φ4.5 φ1.5
8579.1618 - Cannulated torx Screwdriver DB4.5 HL6.5 φ1.5
8362.1618 - Torx Screwdriver DB4.5 HL6.5
8611.5828 - Cleaning Pin HL6.5 φ1.5x180
8110.2258 - Coupling Handle
8110.2008 - Coupling Handle
8225.0018 - Screw Holding Forceps

Technical characteristics / specifications

• Brand: Centrau Medical Instrument
• Commercial denomination: Headless Cannulated Screw Set
• Series: Trauma Instrument Set Series (Plate and Screw Set)
• Included instrument sets: 2.5, 3.0, 4.0 and 6.5 Headless Compression Screw Instrument Sets with listed components
• Components: depth gauges, guide wires, drill guides, cannulated drill bits, cannulated Torx screwdrivers, Torx screwdrivers, cleaning pins, quick coupling/coupling handles, screw holding forceps
• Screw / reference sizes referenced in descriptions: 2.5; 3.0 / 3.5; 4.0 / 5.0; 6.5 (with specific diameters and lengths indicated alongside items)
• Instrument item numbers: as listed in the set list above
