Dental implant surgery instrument kit 3193

dental prostheticsdental surgery

Product overview

Description

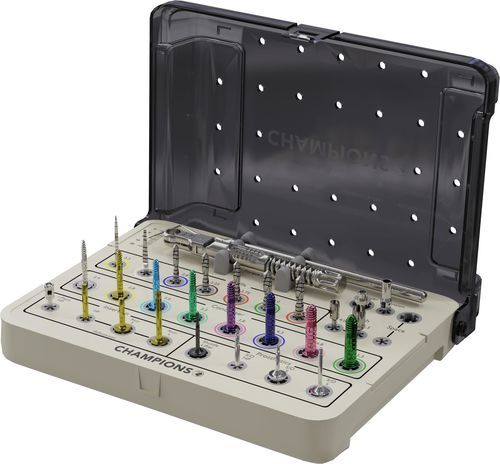

Fully equipped OP-tray containing all instruments required for insertion of CHAMPIONS implants. Color coding and additional markings on the inlay facilitate handling and instrument allocation after use and sterilization.

Contents

• KKK probe — Ref. 3180
• Torque ratchet — Ref. 3090
• Ratchet adapter — Ref. 3061
• Drill extension — Ref. 3036
• Triangular drill, yellow, long, ø 2.3 mm — Ref. 3000
• Triangular drill, white, ø 3.3 mm — Ref. 3030
• Twist drill, blue, ø 2.8 mm — Ref. 3031
• Twist drill, brown, ø 3.25 mm — Ref. 3032
• Twist drill, orange, ø 3.75 mm — Ref. 30331
• Twist drill, green, ø 4.0 mm — Ref. 3034
• Twist drill, red, ø 4.5 mm — Ref. 30345
• Mucosal punch ø 4.0 mm — Ref. 3088
• Mucosal punch ø 5.5 mm — Ref. 3089
• Condenser, silver, ø 2.4 mm — Ref. 3065
• Condenser, light blue, ø 2.8 mm — Ref. 30651
• Condenser, green, ø 3.0 mm — Ref. 3066
• Condenser, yellow, ø 3.3 mm — Ref. 30661
• Condenser, purple, ø 3.8 mm — Ref. 3067
• Condenser, blue, ø 4.3 mm — Ref. 3068
• Condenser, pink, ø 4.8 mm — Ref. 30681
• Condenser, green, ø 5.3 mm — Ref. 3069
• Insertion aid WS-connection — Ref. 3039
• Insertion aid Champions (R)Evolution WS-connection* — Ref. 3063
• Insertion aid Champions (R)Evolution short, Ricci I — Ref. 30631
• Insertion aid Champions (R)Evolution long, Ricci II — Ref. 30632
• Shuttle extractor Champions (R)Evolution — Ref. 3087
• Prosthetic driver WS-connection, short — Ref. 30862
• Prosthetic driver, short — Ref. 30861
• Prosthetic driver Champions (R)Evolution, long — Ref. 3086
• Surgery box — Ref. 3190-5

Technical specifications

• Product number / SKU: 3193
• Brand: CHAMPIONS
• Set type: OP-tray, fully equipped (includes sterilizable surgery box Ref. 3190-5)
• Included instruments: drill and condenser range, insertion aids, ratchet, adapter, prosthetic drivers, mucosal punches, KKK probe, shuttle extractor (see full list above)
• Drill and condenser sizes: triangular and twist drills and condensers with color coding and diameters e.g. ø 2.3 / 2.8 / 3.0 / 3.25 / 3.3 / 3.75 / 4.0 / 4.3 / 4.5 / 4.8 / 5.3 mm
• Material notes (from component texts): stainless steel (instruments), titanium (some condensers/condensation screws) — depending on the component
• Price visibility: prices visible to logged-in customers only
• Currency (in offering): EUR
• Release / metadata date: 2026-04-30

Notes
Color coding and inlay labeling are provided to simplify handling and allocation of instruments after use and sterilization.
