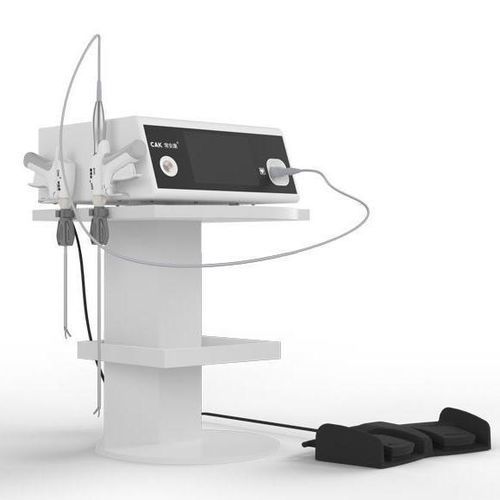

Cutting electrosurgical unit

high-frequencyultrasonic

Product overview
The ultrasonic scalpel system uses high-frequency ultrasonic vibrations to cut and coagulate soft tissue simultaneously. Ultrasonic energy enables precise dissection with limited thermal spread, sealing vessels and reducing intraoperative bleeding. It is indicated for delicate procedures where controlled cutting and hemostasis are required, including thyroid, hepatic and certain ophthalmic surgeries. The combined cutting and coagulating action can reduce the need for additional ligature devices and support faster postoperative recovery.

Advantages of Ultrasonic Scalpel

• Higher and more stable burst pressure: reliably coagulates vessels ≤ 5 mm in a single activation.
• Improved cutting speed: cutting efficiency reported up to 33% faster versus some leading brands.
• Reduced lateral thermal damage: designed to minimize heat spread to adjacent tissues.
• Enhanced jaw clamping and holding force: improved tissue grasp and stability during manipulation.

Specifications of Ultrasonic Scalpel
Component | Model | Description
Generator | AKG10 | —
Hand piece | AKHP10 | Includes torque wrench and test rod accessories
Ultrasonic soft tissue shear | AKUS14A | Applicable length 14 cm, curved cutter
| AKUS23A | Applicable length 23 cm, curved cutter; torque wrench as attachment
| AKUS36A | Applicable length 36 cm, curved cutter; torque wrench integrated in the piece
| AKUS45A | Applicable length 45 cm, curved cutter
Foot switch | AKFS10 | —

Soft Tissue Shear (detailed)
Model | Shaft Length | Shaft Diam.
AKUS14A | 140 mm | 5.5 mm
AKUS23A | 230 mm | 5.5 mm
AKUS36A | 360 mm | 5.5 mm
AKUS45A | 450 mm | 5.5 mm

Technical specifications

• Brand: CAK MEDICAL
• Generator model: AKG10
• Hand piece model: AKHP10 (includes torque wrench and test rod)
• Foot switch model: AKFS10
• Soft tissue shear models and dimensions: AKUS14A (140 mm shaft, 5.5 mm dia, curved cutter); AKUS23A (230 mm, 5.5 mm); AKUS36A (360 mm, 5.5 mm); AKUS45A (450 mm, 5.5 mm)
• Sealing capability: reliably coagulates vessels ≤ 5 mm
• Cutting efficiency: up to 33% faster vs some leading brands
• Designed to minimize thermal spread and reduce lateral heat damage
• Enhanced jaw clamping and holding force for improved tissue manipulation
