Storage locker

securitykeytoilet

Product Brief

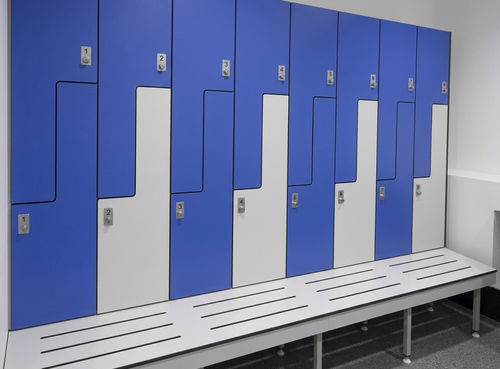

HPL toilet partition lockers designed for swimming pools, wet public areas and high-humidity facilities. Manufactured from phenolic laminate (solid phenolic panel) or second-generation board for waterproof, fire-resistant and easy-to-clean performance. Custom sizes, finishes and lock types available.

Materials & Board Types

• Phenolic Laminate Board (Solid Phenolic Panel)
• Second Generation Board (alternative option)

Phenolic Laminate Board vs Second Generation Board
Material Type | Phenolic Laminate Board | Second Generation Board
Density | 1450 kg/m³ | 1200 kg/m³, 1400 kg/m³
Thickness | 4 mm, 5 mm, 8 mm, 12 mm | 4 mm, 5 mm, 8 mm, 12 mm

HPL Locker and Toilet Partition Specification
Name | HPL Locker / HPL Toilet Partition Locker
Material | Phenolic Laminate Board or Second Generation Board
Color | Solid color, Wood grain, Marble, Floral, Metal finishes
Thickness | 4 mm, 5 mm, 6 mm, 8 mm, 12 mm (custom options)
Lock | Digital lock, Key lock, RFID lock (project configurable)
Size | Standard per column: 300W × 400D × 1800H mm; other sizes customizable

Product Features

• Moisture and corrosion protection: waterproof surface and core protection suitable for humid environments.
• Design versatility: multiple finishes (solid, wood grain, marble, floral, metal) to match facility interiors.
• Hygienic and low maintenance: phenolic HPL surface is easy to clean and resistant to staining.
• Impact and scratch resistance: durable under frequent commercial use.
• Long-term durability: suitable for continuous use in wet-area public facilities.

Installation Process

• Step 1: Fix left, right and back boards using M4×12 round head screws and stainless corner fasteners.
• Step 2: Install Partition 1, top and bottom boards; use M4×25 wafer head self-tapping screws and M4×12 screws as required.
• Step 3: Fit cork base bottom board; secure with M4×12 screws and stainless corner fasteners.
• Step 4: Mount clothes rail and flange through partition holes; position and fasten flange.
• Step 5: Install door board with hinge; adjust clearances and fix with hinges and M4×12 screws.
• Step 6: Install Partition 2 and connect to top, bottom, back and partition 1 with M4×25 screws.
• Step 7: Install lock (digital/key/RFID) with M4×12 screws.

Advantages & Applications

• Ideal for poolside lockers, shower partitions, toilet cubicles and changing rooms in gyms, SPAs, sports centres and public wet areas.
• Suitable for integrated locker banks with electronic or keyless access for public storage.
• Resistant to rust, moths and common wet-area issues, enabling long service life.

Technical Specifications

• Brand: Polybett
• Material: HPL (Phenolic Laminate) or Second Generation Board
• Standard Size (per column): 300 × 400 × 1800 mm (W × D × H) — customizable
• Color / Finishes: Solid colors, wood grain, marble, floral, metal
• Thickness Options: 4 mm, 5 mm, 6 mm, 8 mm, 12 mm (customizable)
• Typical Density: Phenolic ~1450 kg/m³; Second Generation ~1200 / 1400 kg/m³
• Lock Options: Digital lock, Key lock, RFID lock
• MOQ: 100 square meters (example)
• Lead Time: Typically 20–25 days (5–10 days if in stock)
