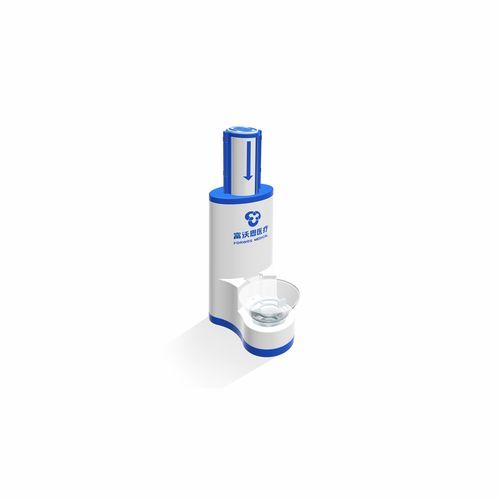

Bone graft preparation system FWS-WJ-002A

Instructions

• Equipment preparation: Configure 10-20ml of 1000U/ml heparin normal saline, and draw 1/5 of the volume of bone marrow to be drawn into the syringe in advance. Prepare 1~2 16# bone marrow puncture needles. Put the bone repair material into the cone and cover with the upper filter.
• Bone marrow extraction: Choose the anterior superior iliac spine or posterior iliac as the bone marrow puncture point. Use a syringe containing heparin saline to draw an appropriate amount of bone marrow. It is recommended to aspirate 2.5~5ml of bone marrow from each site and shake it immediately. The total amount is 5~6ml bone marrow per gram of bone graft material. The bone marrow can also be obtained in the same way as above in the steps of implanting pedicle screws.
• Cyclic enrichment: Inject the bone marrow into the cone, close the outer cover, and evenly press the handle of the bone growth enricher to the top of the bone and release it. After the bone marrow is completely refluxed and the handle returns to the original position, press the handle again to start the second cycle. Accumulate 4 to 5 times of the above enrichment operations.
• Material transplantation: Open the outer cover and rotate the cone counterclockwise to remove the cone from the base. According to the needs of the operation, the bone repair material can be taken out and directly implanted in the desired bone graft area, or the intervertebral fusion cage or titanium cage can be inserted into the desired site.

Features

• Quick enrichment of effective bone formation components such as stem cells and growth factors from autologous bone marrow.
• Improves biological activity of bone graft materials.
• Increases bone fusion rate.

Characteristics / Technical Specifications

• Model: FWS-WJ-002A
• Circulatory system components: Syringe holder (Acrylonitrile, butadiene and styrene), Syringe piston (Silica gel), Body/lower cover/upper cover (Acrylonitrile, butadiene and styrene)
• Filtration system components: Filter material (Acrylonitrile, butadiene and styrene Stainless steel 316L), Vertebral cup/rotating seat/filter cover/vertebral cup cover (Polypropylene)
