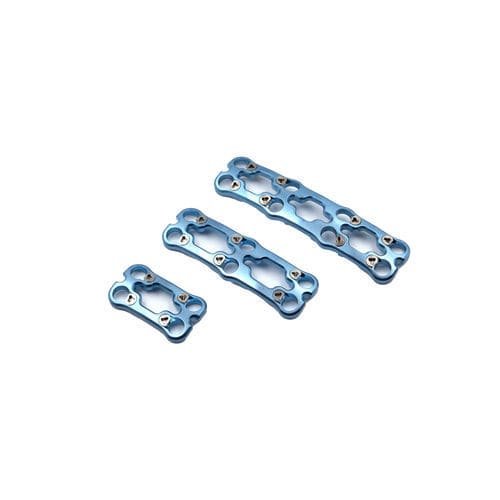

Cervical compression plate JQL series

Product Summary

The product components include fixed titanium plates and screws. The fixed titanium plate is made of TA3G pure titanium material conforming to the GB/T13810 standard, and the screw is made of TC4 titanium alloy material conforming to the GB/T13810 standard. The surface of the fixed titanium plate and the screw is treated with colored anodizing. Non-sterile packaging.

Features

• Large bone graft window to provide better surgical vision
• Multiple fixation modes, providing strong fixation semi-rigid fixation and mixed fixation modes to meet different clinical needs
• Cam locking design, locking is accurate and reliable, providing multi-sensory locking confirmation
• Low notch, alleviate dysphagia after operation

Specifications

Model | Name | Type | Specification

JQL-Ⅱ | Fixed titanium plates | - | Length: 25, 27, 30, 32, 35, 38, 41, 44, 47, 50, 53, 56, 59, 62, 65

Screw | Fixed | Diameter: Self-tapping 4.0, Self-drilling 4.0 | Length: 10~25

JQL-Ⅲ | Fixed titanium plates | - | Length: 21, 23, 25, 27.5, 30, 32.5, 35, 37.5, 40, 42.5, 45, 47.5, 50, 52.5, 55, 57.5, 60, 62.5, 65, 67.5, 70, 72.5, 75, 77.5, 80, 82.5, 85, 87.5, 90, 95, 100

Screw | Fixed Adjustable | Diameter: Self-tapping 4.0, 4.5; Self-drilling 4.5 | Length: 10~25

JQL-Ⅳ | Fixed titanium plates | - | Length: 19, 22, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51, 53, 54, 57, 60, 63, 66, 69, 72, 75, 78, 81, 84, 87, 90

Screw | Fixed Adjustable | Diameter: Self-tapping 4.5, 4.8; Self-drilling 4.5 | Length: 10~25

Note: There are two types of screw head: hexagon socket and plum blossom.

Scope of application

It is suitable for cervical spine fracture, vertebral body resection, degenerative disease, anatomical variation, and dislocation surgery for anterior cervical internal fixation. The product should be used with intervertebral fusion cage when used for vertebral body resection surgery.

Characteristics / Technical Specifications

• Material: TA3G pure titanium (plate), TC4 titanium alloy (screw)
• Surface treatment: colored anodizing
• Packaging: Non-sterile
• Conforms to GB/T13810 standard
• Plate lengths: multiple options per model (see above)
• Screw diameters: 4.0, 4.5, 4.8 mm (depending on model)
• Screw lengths: 10–25 mm (every 1mm is a specification)
• Screw head types: hexagon socket, plum blossom
