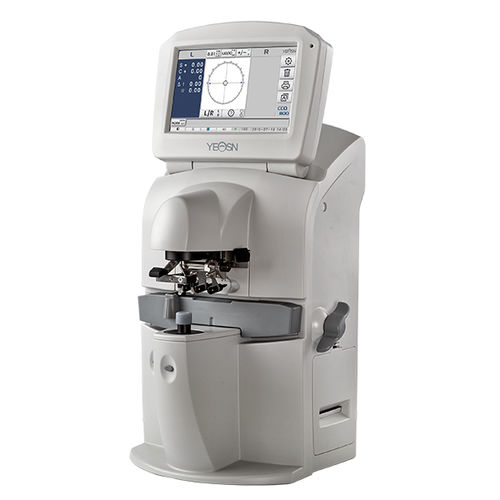

Automatic lensmeter CCQ-800
with pupil distance measurementwith UV transmission measurement

automatic lensmeter
automatic lensmeter
automatic lensmeter
automatic lensmeter
Add to favorites
Compare this product


with UV transmission measurement, with pupil distance measurement


Auto Identification of Lens Type Support auto judgment of lens type and identification of single-vision and progressive lens. Green LED Light Source No need to set Abbe compensation when measuring lenses with different refractive indexes. Hartman Measurement Adopts multi-points collection optical system. Equipped with 7-inch industrial HD touch screen with outstanding image quality. Unique multi-core processor. Strong data processing core,supporting accurate measurement of low astigmatism and low transmittance lens Supports measurement of PD, PH,UV ;built-in thermal printer. Sphere lens -25.00D~+25.00D,Step0.01D/0.06D/ 0.12D/0.25D Cylinder lens -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D Add -9.99D~+9.99D,Step0.01D/0.06D/ 0.12D/0.25D Contact lens -20.00D~+20.00D,Step0.01D/0.06D/ 0.12D/0.25D Axis 0°~180°,Step1° Prism basal angle 0°~360°,Step1° Prism power 0~20 Δ,Step0.01Δ Lens diameter ø10mm~ø100mm Lens center thickness ≤20mm Lens pupil distance 40mm ~82mm Size and weight 235(W)×246(D)×487(H)mm/5.45kg Power supply Output DC 12V 3.34A
